SPECIAL FEATURES:
1.High brightness LED:

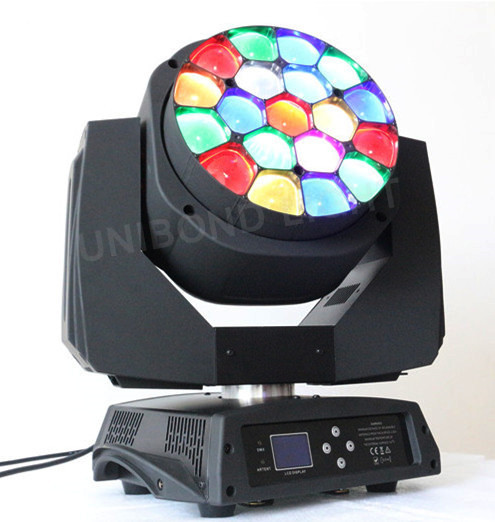

Osram Ostar 19x15w 4IN1 RGBW
2.Invisible front grid:
Compact and unique honeycomb design
3.Three effects:
Uniform wash,mid-air parallel beam, spectacular built-in graphic effects
4.Wonderful effects for projection use:
" kaleidoscope" and "Vortex"
5.Excellent zoom angle:
4-60°,suitable for small and big applications.
6.Individual LED control:
( Benifit ) for dynamic effect.
7.Front lens：
Bi-directional and continuous rotating.
8. CTO:
Linear controlled 2500-8000K.
Effect Photo:
Work Shop :
TECHNICAL PARAMETERS:
POWER SUPPLIES:
100-240V 50/60Hz
LAMP SOURCE
19×15W Osram Ostar RGBW LEDs,50,000 h.
Color temperature：2500 - 8000 k
OPTICS
4°-60° Electronic Zoom angle
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Front Lens Bi-directional Rotation
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
RGBW auto-tuning
CONTROL AND PROGRAMMING

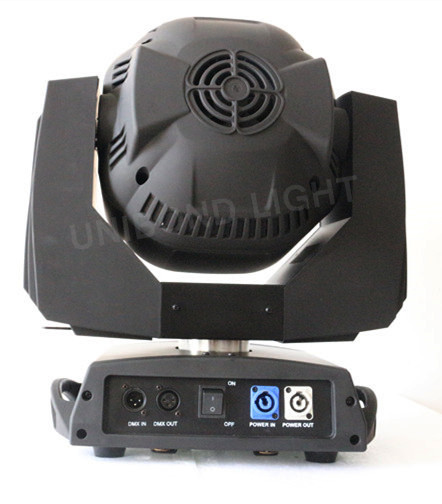

DMX512: 3/5-pin XLR IN-OUT sockets
Power connect: Powercon in&out
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not
controlled by control unit.
Display:LCD display
Travel:
PAN = 540°
TILT = 210°
Dimession
Size:494*358*253
Weight:15 Kg
