: All high-precision laser metal cutting technology : Electrostatic adsorption technology high temperature baking paint : Customized button cap = multilayer composite paint sprayingtechnology, super antifraying, prevent light leak
: Professional mechanical buttons : Imported encoder, high-precision CNC machining, anodizing, aluminum encoder cap : Hydraulic screen angle adjustment support structure : Small size light weight design {875 * 680 * ( high 130 low 80) mm} : Core components PCB full board Immersion Gold Process : Industrial parts, strict selection, to ensure maximum stability guarantee : Fine assembly process, uninterrupted 24-hours ageing test : More than two hours of uninterrupted simulate shake test
Effect Photo:
Electrical parameters:VIDEO
Wide-voltage, low-power consumption ,energy-saving design: AC165-264V Power:. 150W
Built-in UPS uninterruptible power supply , zero delayed automatic switching , undervoltage,overvoltage protection
Pana sonic UPS,dedicated high density maintenance-free batteries
Industrial Integration 1037U Motherboard
Multi-screen touch control display card
ROM-60GB solid state disk
RAM- 4GB DDR3 1600

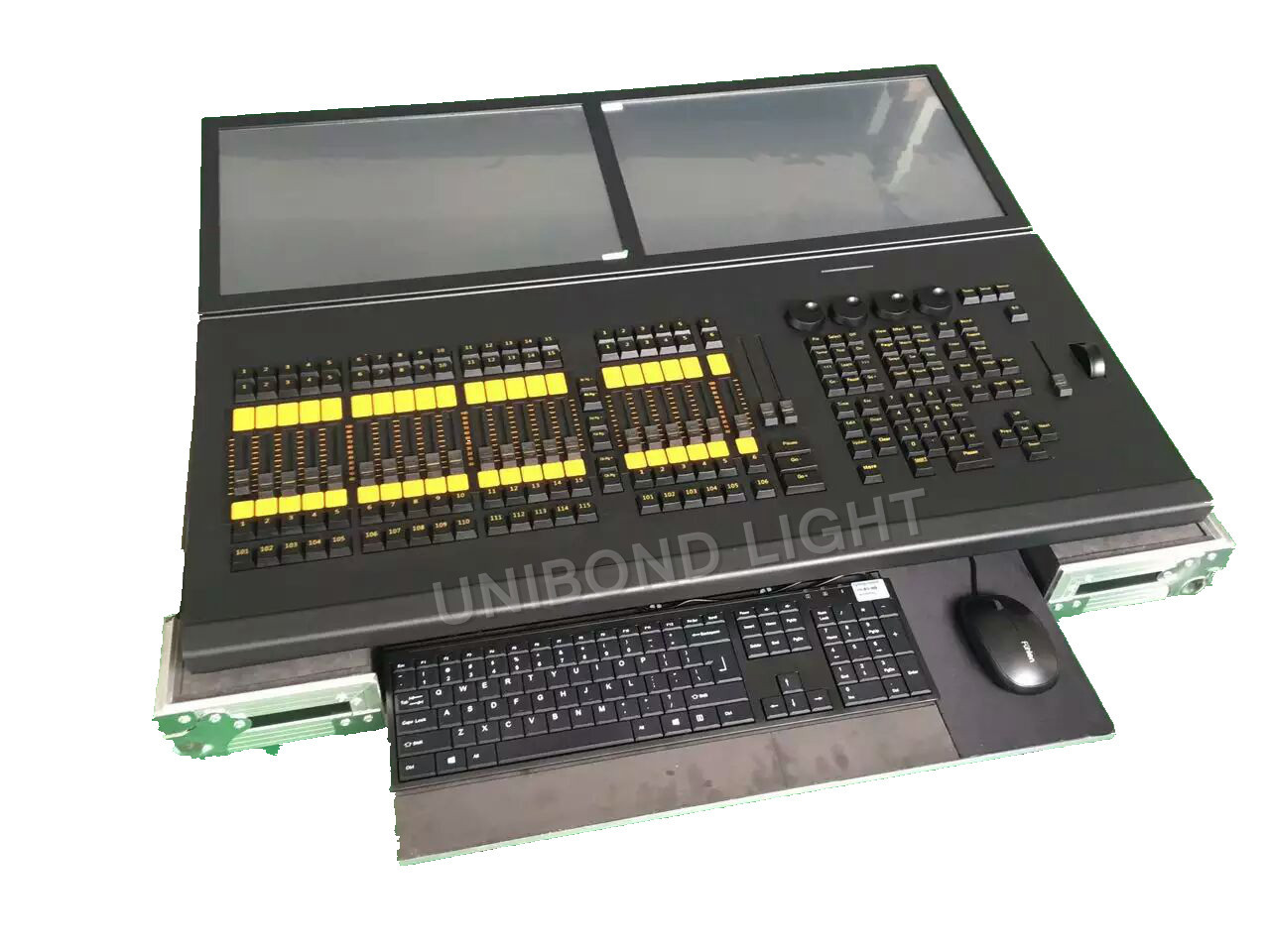

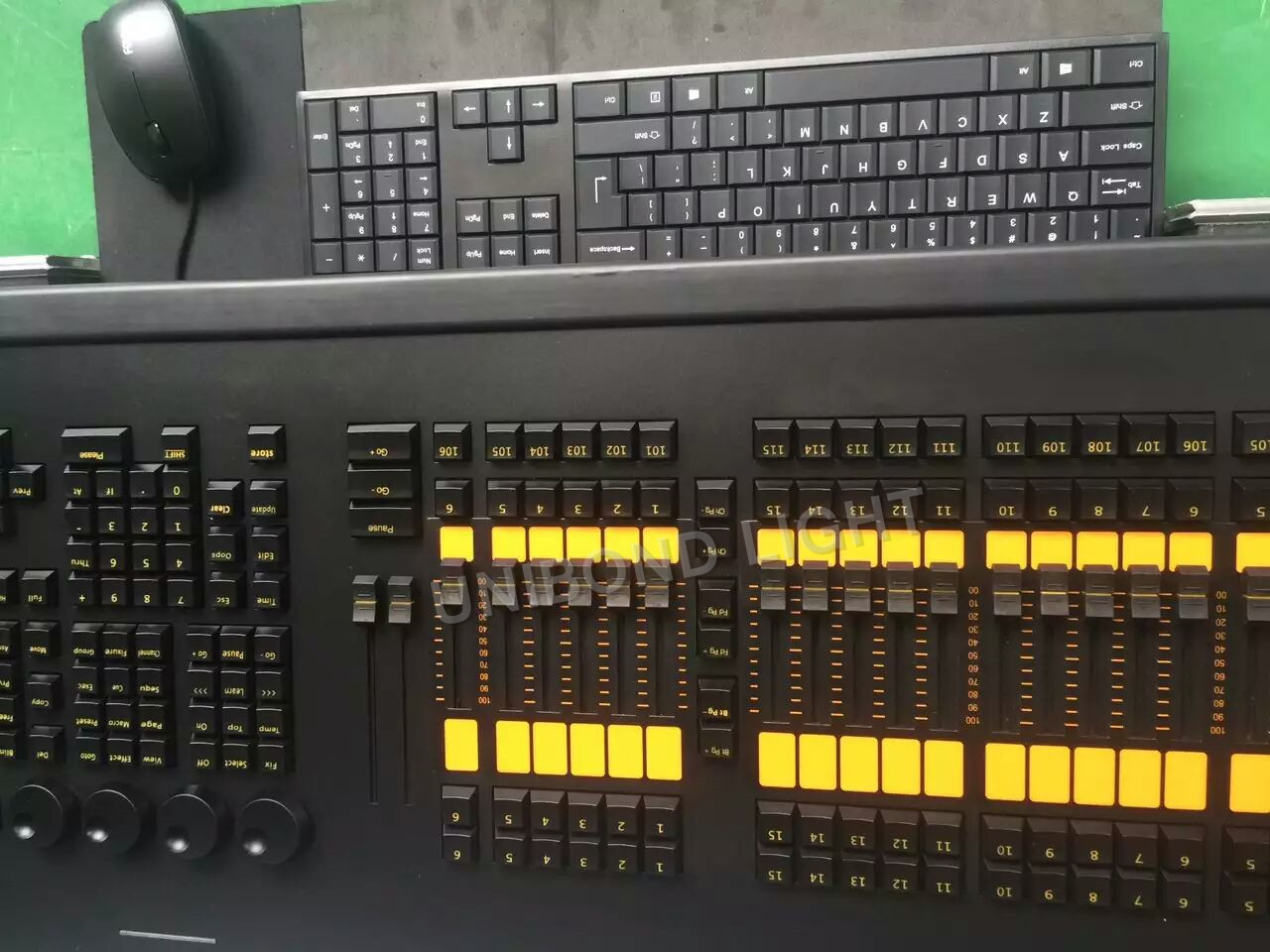

Control settings:
: A master dimming wheel
: 4 Attribute value encoder wheel (integration of key functions)
: A Master Fader (60mm manual)
: 2 AB Fader (100mm manual)
: 21 program playback Fader (60mm manual)
: 42 program store function buttons

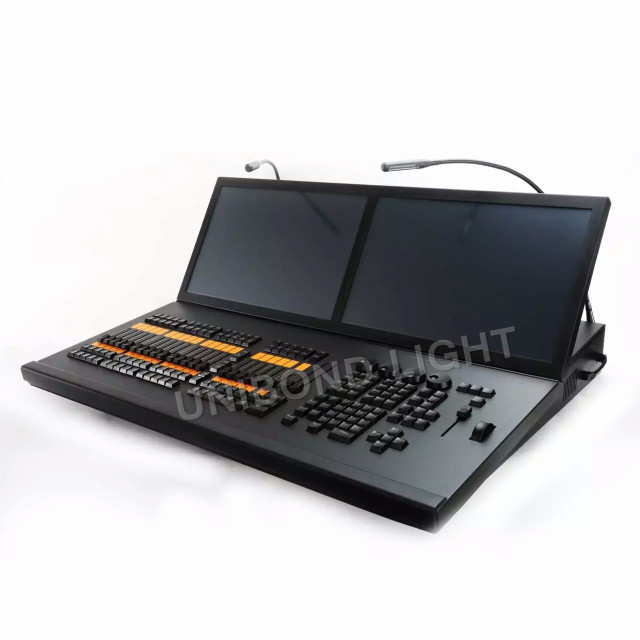

: Two 19-inch wide screen touch screen
: Full-size command keypad

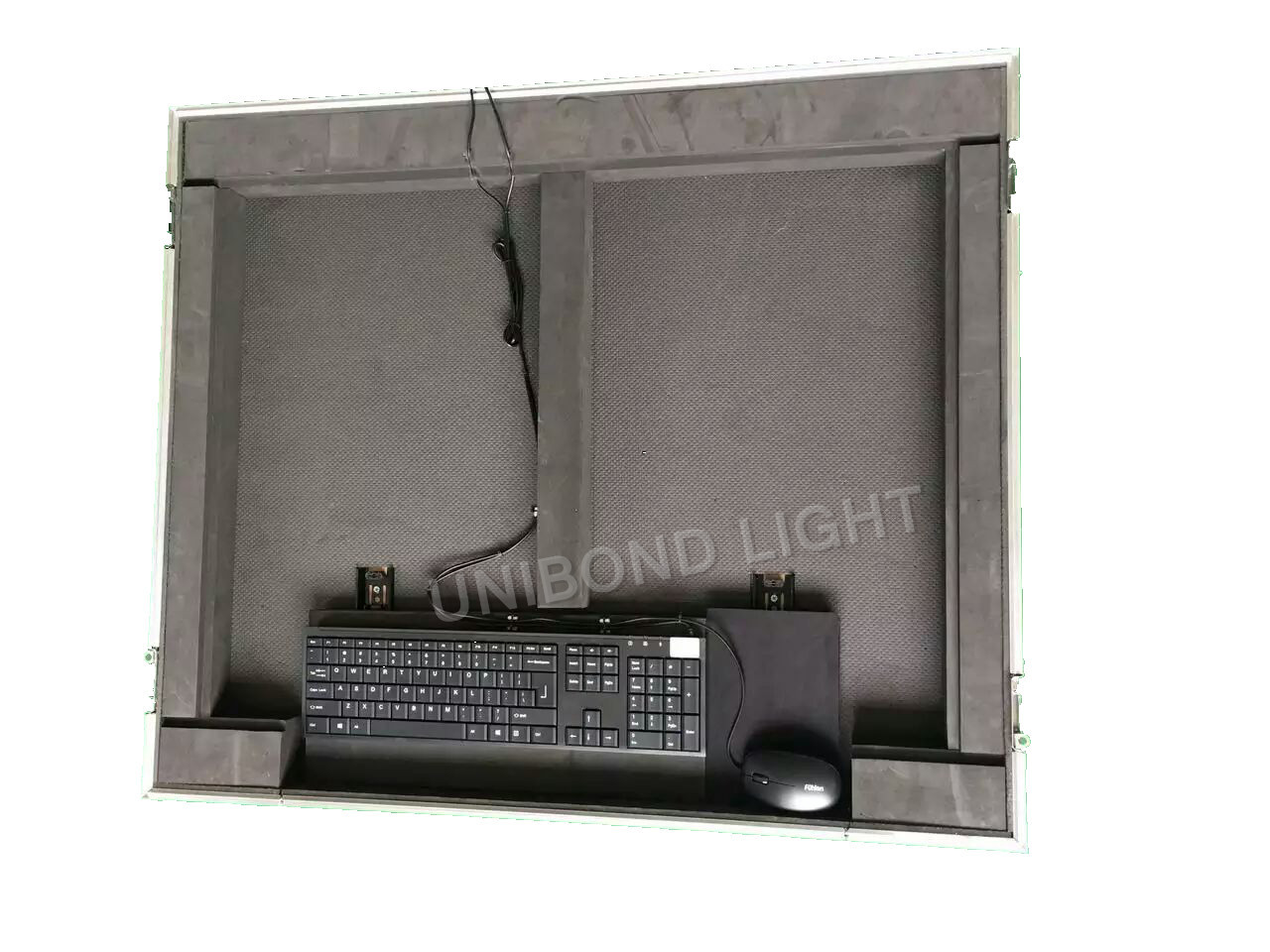

: Flight case attached with keyboard and mouse

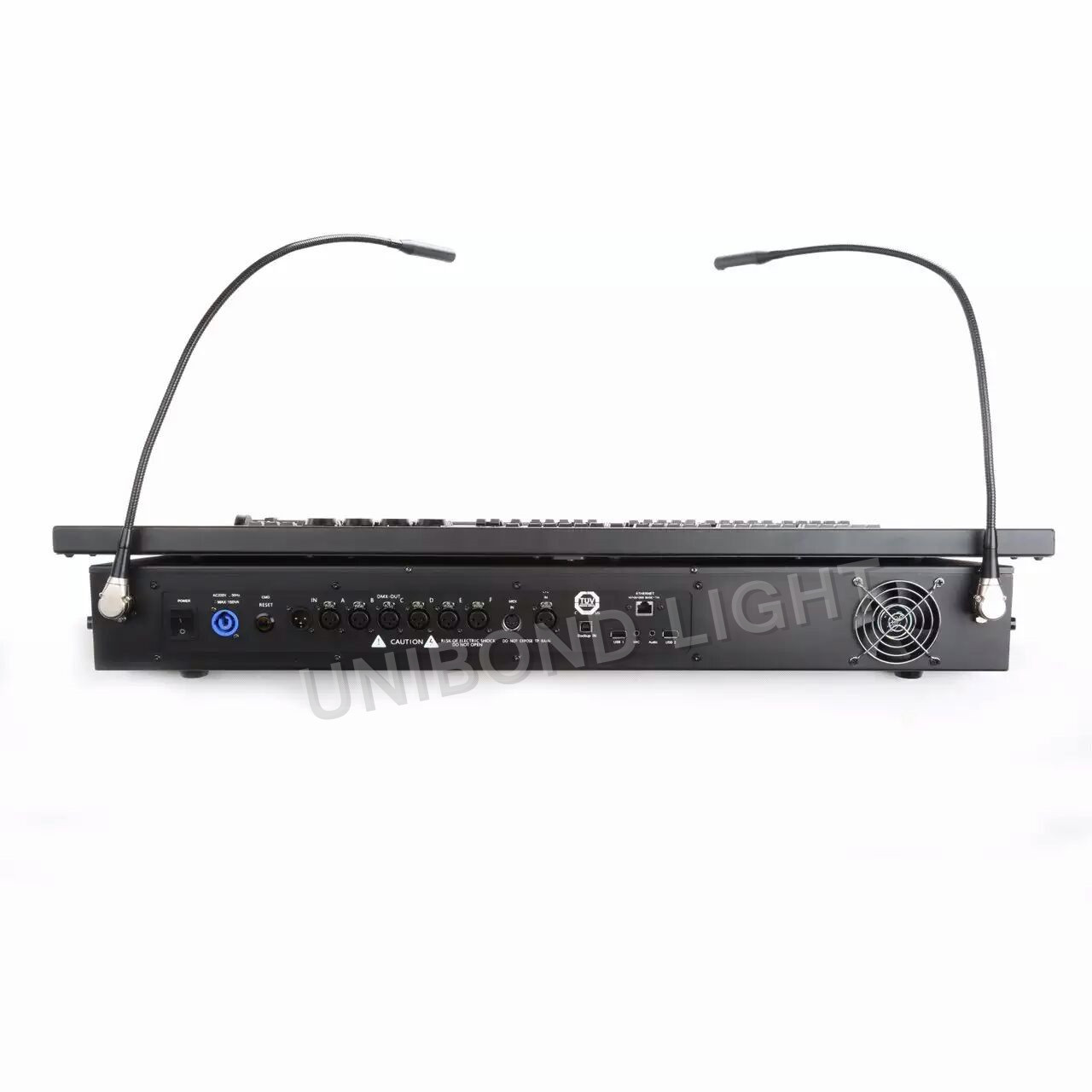

Interfaces
: 4 USB connector (A type)
: A spare USB input port (B type)
: An audio input interface
: A stereo output interface
: An LTC input interface
: 6 DMX-512 output interface
: 1 DMX-512 input connector (composite output function)
: 2 working lamp Interface
: A gigabit network interface
: A MIDI input interface
