Description

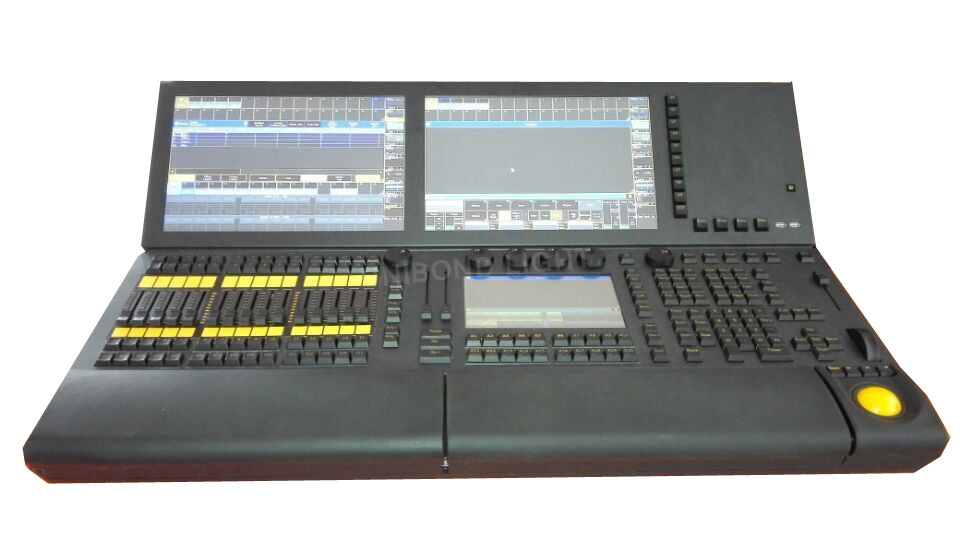

SPECIAL FEATURES:
• Real-time control for up to 65,536 parameters per session in connection with MA NPU (equivalent to 256 DMX universes)
• 4,096 HTP/LTP parameters
• 6 DMX outputs
• 1 internal TFT wide mode touchscreen (15.4" WXGA)
• 2 external TFT screens can be connected (UXGA, touchscreens accepted)
• 1 internal command screen – multi-touch (9" SVGA)
• 15 executor faders
• 2 etherCON connectors, 4 USB 2.0 connectors
• Motorized monitor wing
• 2 motorized A/B fader 100mm
• Individually backlit and dimmable silent (clickless) keys • Dimensions 935 x 204 x 661mm / 36.8 x 8 x 26inch
• Input connectors 1 x XLR 5pin (DMX), 1 x XLR 3pin (Sound), 1 x XLR 3pin (SMPTE), 1 x DIN (Midi), 1 x Sub-D 25pol (Analogue Remote), 1 x powerCON
• Net weight 35kg / 77lbs
