Key Features
Power Supply: AC100-240V, 50/60Hz
Total Power: 600W
Lamp Model: Phoenix 380W lamp from Japan / Osram 371 lamp, 31 pieces of 0.5W RGB three-in-one LEDs
Luminous flux: 7950lm, color temperature up to 8500K, 152mm light output diameter
Ballast: Electronic inductive ballast
Control Mode: DMX512/WDMX/Manual
Channels: 16/18 channels
Beautiful dot matrix display, four touch PCHI key switches, can be reversed 180° for display
Color Wheel: One color wheel, each color wheel consists of 14 color filters + white, rotation speed adjustable, bidirectional water flow effect and rainbow effect.
Pattern Wheel: Fixed pattern wheel, 14 pattern effects + white light (including 4 wave pattern effects)
Prism 1: One large-angle 8-sided prism, Prism 2: 48 honeycomb prism
Can be stacked and rotated independently in both directions
Bidirectional rotation, rotation speed adjustable + seven-color rainbow effect.
Focusing: Linear focusing, from near to far.
Equipped with fogging function, fogging speed adjustable.
0-100% mechanical dimming, supports mechanical strobe and adjustable speed strobe effects, supports strobe macro function, mechanical strobe is 1-12 F.P.S.
Lens group optical system, electric focusing, beam angle 0-4°
Adopting photoelectric reset system, when accidental misoperation occurs, it can automatically search and reset
Horizontal 540°, 8Bit/16Bit fine adjustment
Vertical 270°, 8Bit/16Bit fine adjustment
Equipped with horizontal and vertical fine automatic error correction function.
Overheat protection
IP protection level: IP20
AC/DC switch power supply.
LCD display.

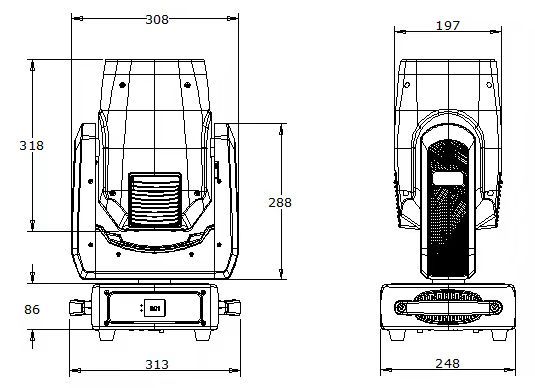

Dimensions: 280×240×530mm
Net weight: 12Kg
