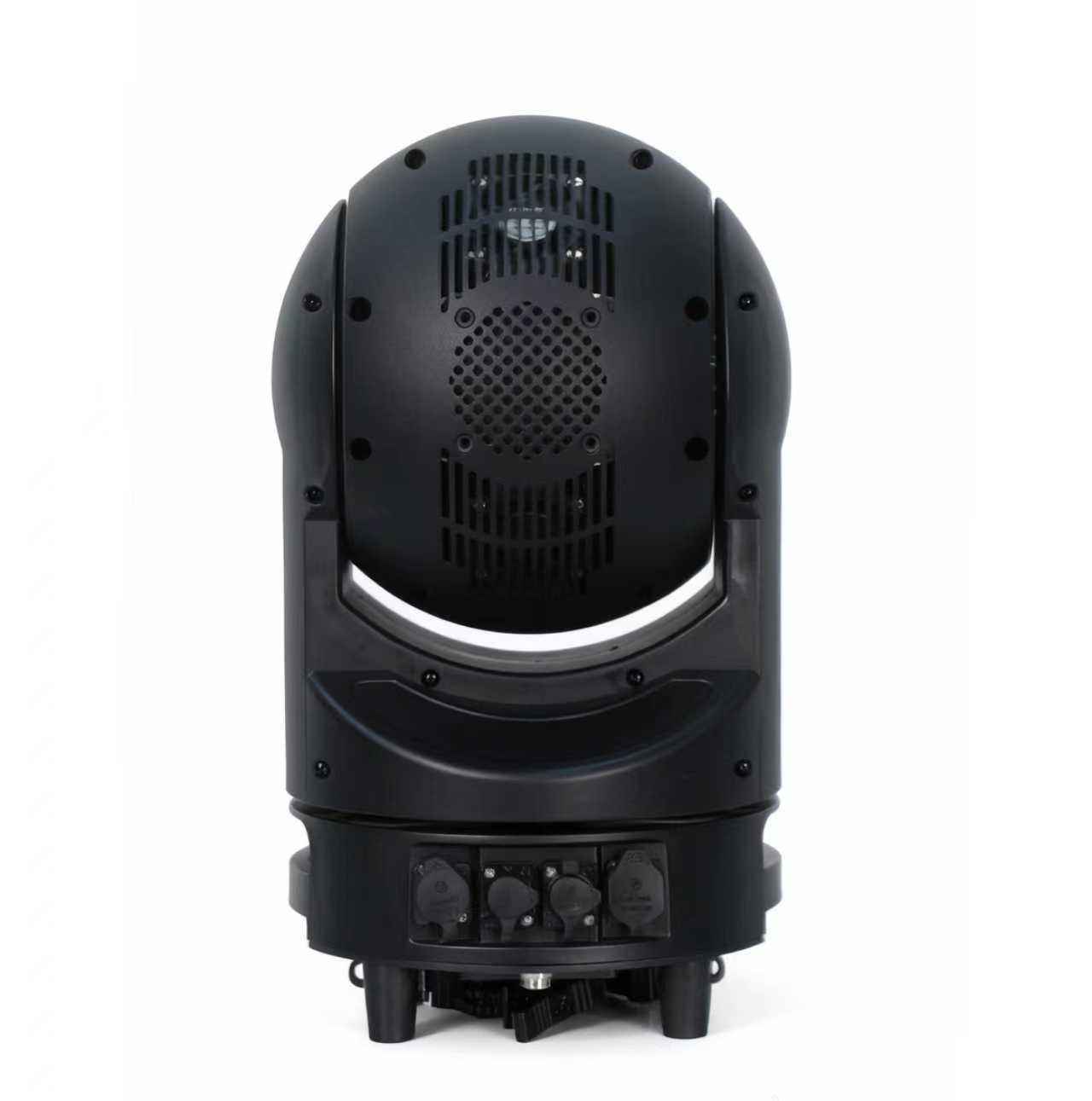

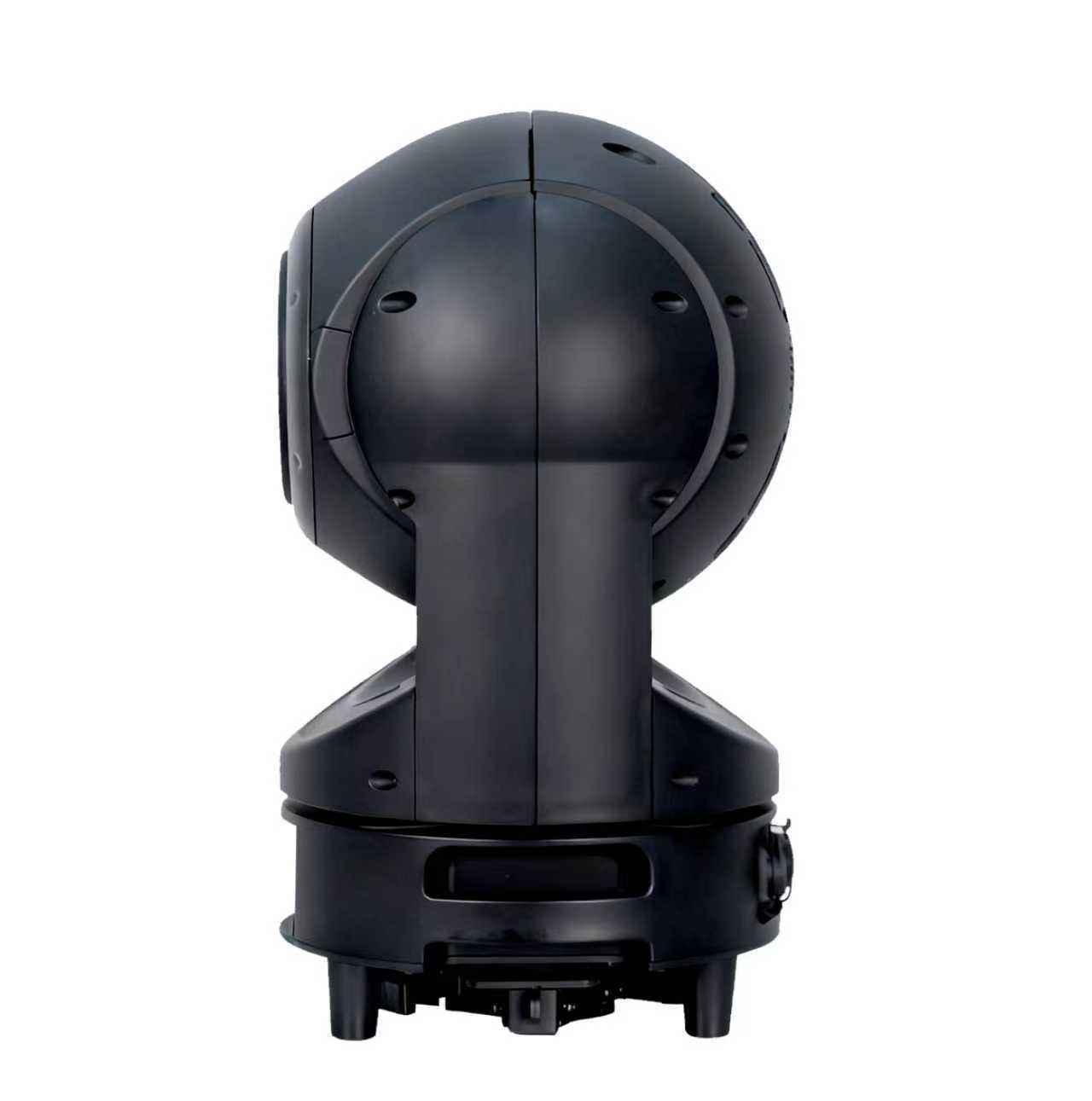

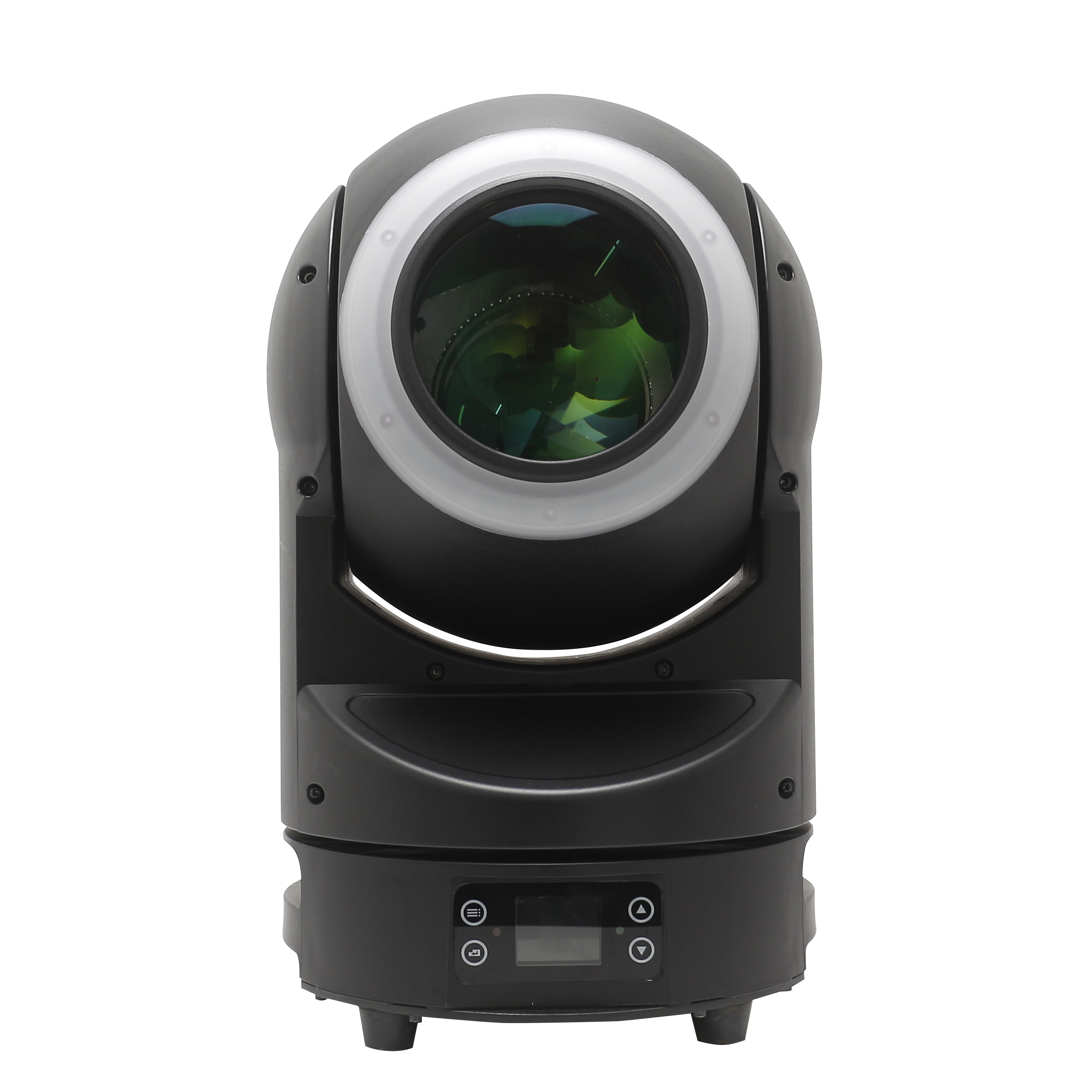

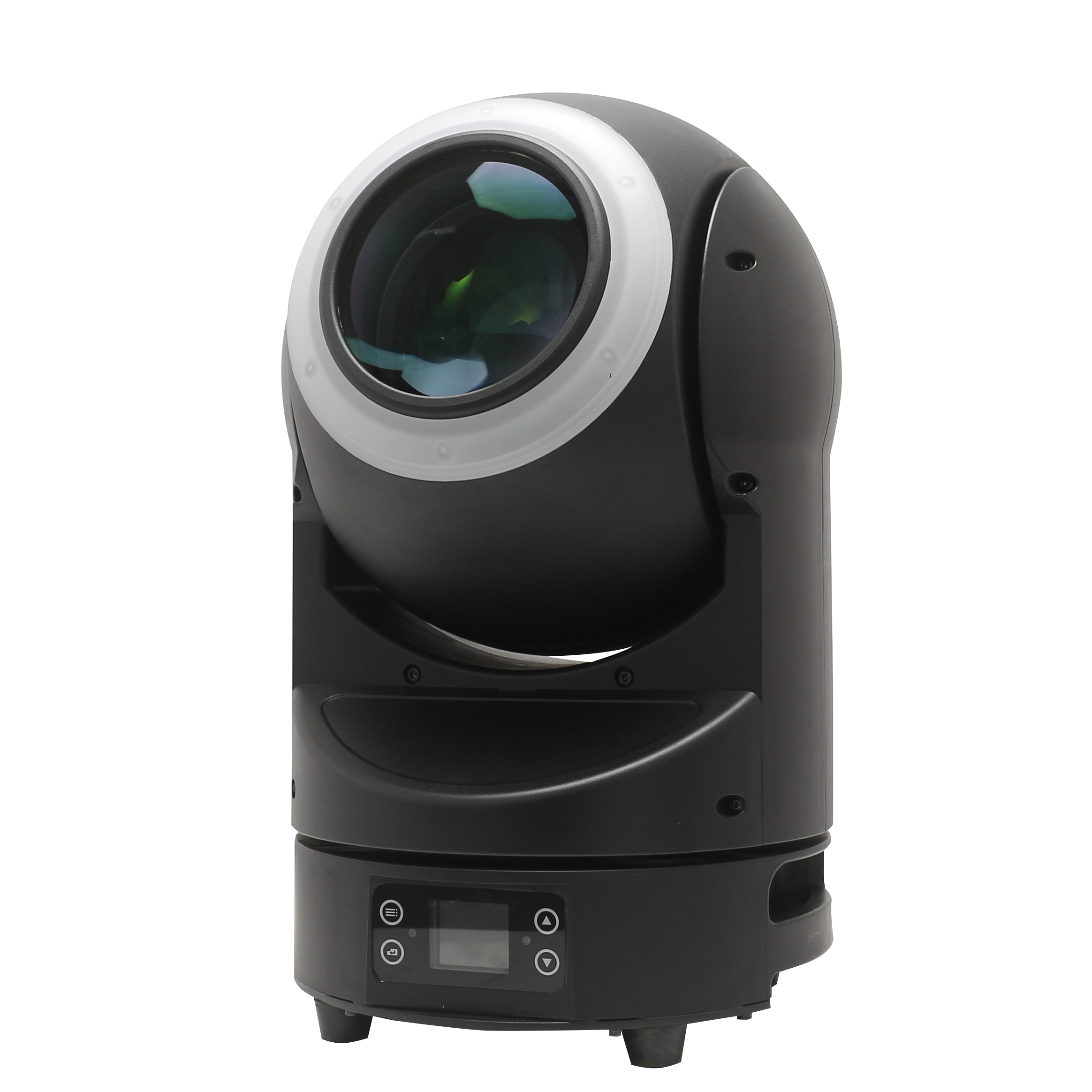

IP65 120W Phosphor Laser Beam Moving Head

No.UB-PL120R
IP65 Waterproof
| Phosphor Laser | 1.2° Beam | 18kg Lightweight | 20,000h Lifespan
|CMY + 29 gobos | 6/8 prism
Much brighter than lamp | 60%+ energy saved | Class 1 Saftely certified                              The UNIBOND IP65 120W Phosphor Laser Beam Moving Head delivers the intensity and precision of a professional phosphor laser fixture in a package that's lighter, lasts longer, and survives any weather. Built around a 120W speckle-free phosphor laser source with a 20,000+ hour lifespan, it's designed to replace aging discharge lamps with a future-proof solution that meets EU 2027 regulations.
  • IP65 120W Phosphor Laser Beam Moving Head
  • IP65 120W Phosphor Laser Beam Moving Head
  • IP65 120W Phosphor Laser Beam Moving Head
  • IP65 120W Phosphor Laser Beam Moving Head
  • IP65 120W Phosphor Laser Beam Moving Head

SPECIFICATION

POWER SYSTEM

  • Voltage: AC110-240V, 50/ 60Hz
  • Power:160W

OPTICAL SYSTEM

  • Light Source: 120W Laser Engine + 36pcs 0.5W RGB 3in1 LED
    Light source life: 20000 hours
  • LEN Diameter: 126mm
  • Beam Angle: 1.2°
  • Frost: 0-100% linear Frost

DYNAMIC EFFECT

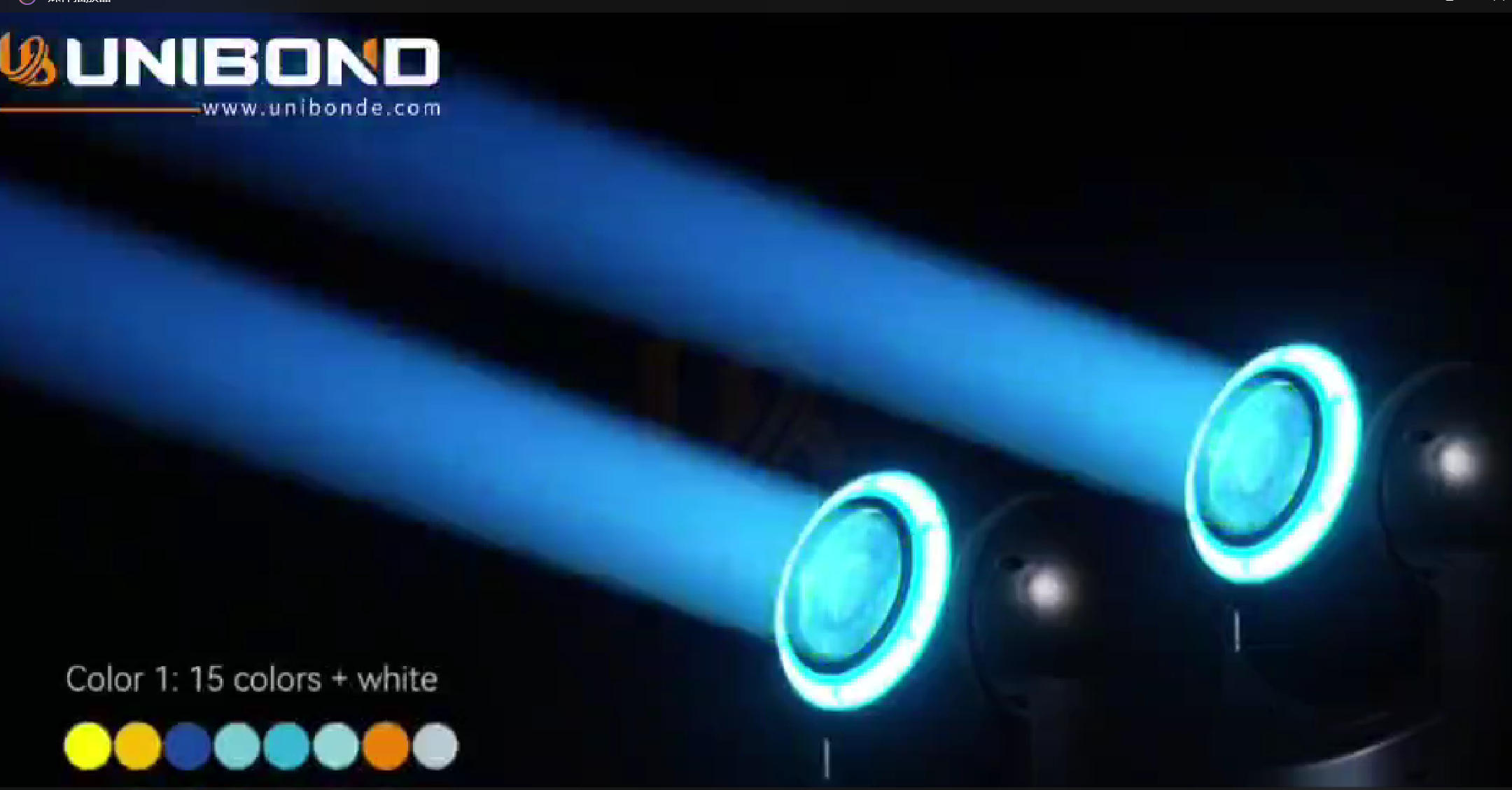

  • Color 1:15 colors + Open
  • Color 2: CMY Color Mixing
  • Static Gobo: 29 static Gobos + Open
  • Prism: 6-linear Prism and 8-facet Prism with bi-directional rotation at variable speed
  • Strobe: shutter speed adjustable from 1-25Hz
  • LED Frequency: 600Hz-24,000Hz Adjustable

CONTROL SYSTEM

  • Pan/Tilt: 360° endless pan & tilt movement, 16 bit smooth and precise resolution for PAN/TILT movement
  • Control Mode: DMX 512, Master/Slave, Work Auto, Sound Activated, Support RDM control
  • DMX Channels: 33/41 DMX Channels
  • DMX Connector: 3-PIN IP XLR IN/OUT

BODY FEATURE

  • Housing: Aluminum Alloy Diecast + plastic
  • Working Environment: -20℃~ 45℃
  • IP Rate: IP65 waterproof grade design
  • Product Size: 280x268x429mm
  • Packing Size: 545x375x380mm
  • Net weight: 16.95kgs
  • Gross weight: 18.90kgs
