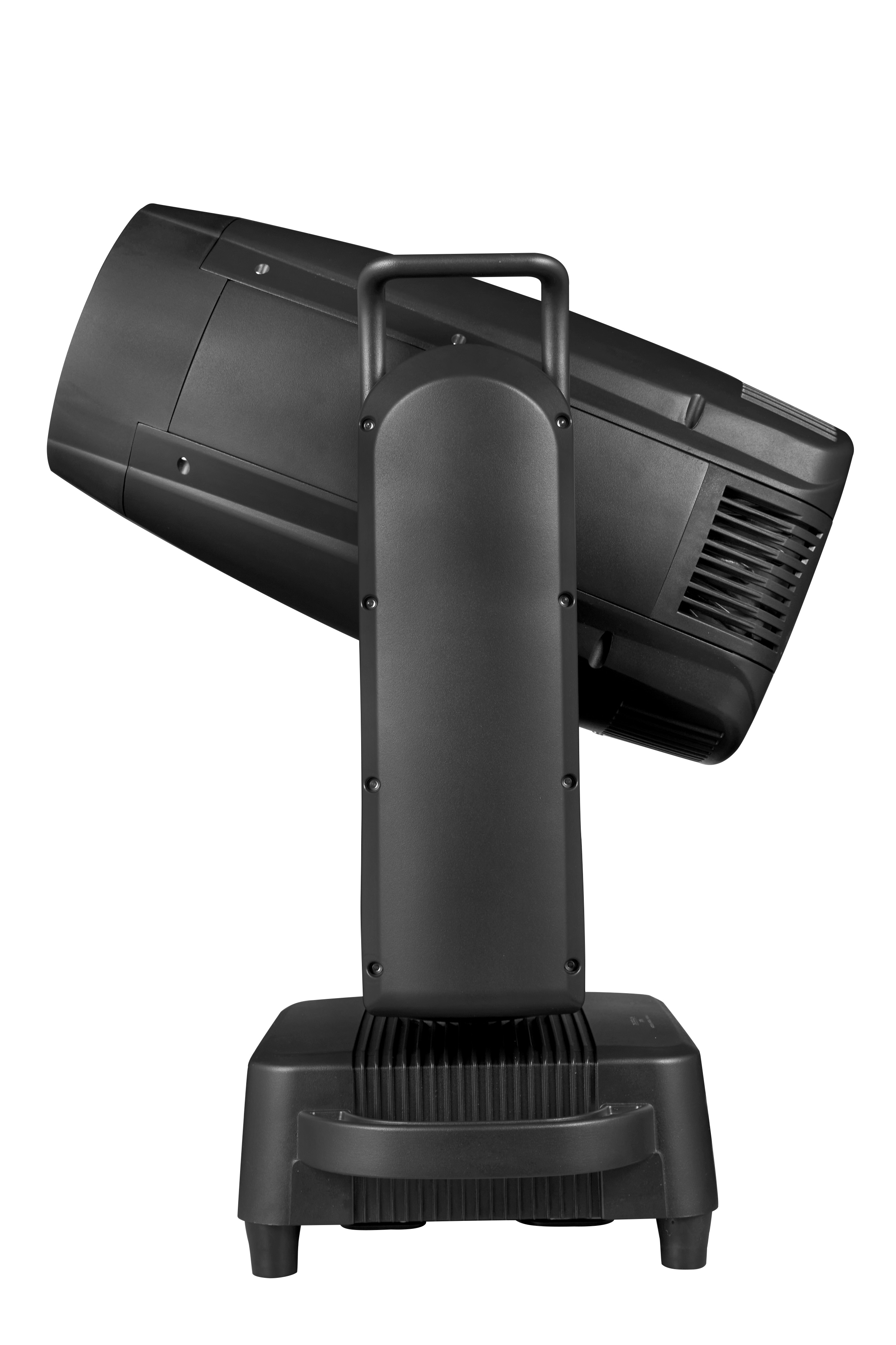

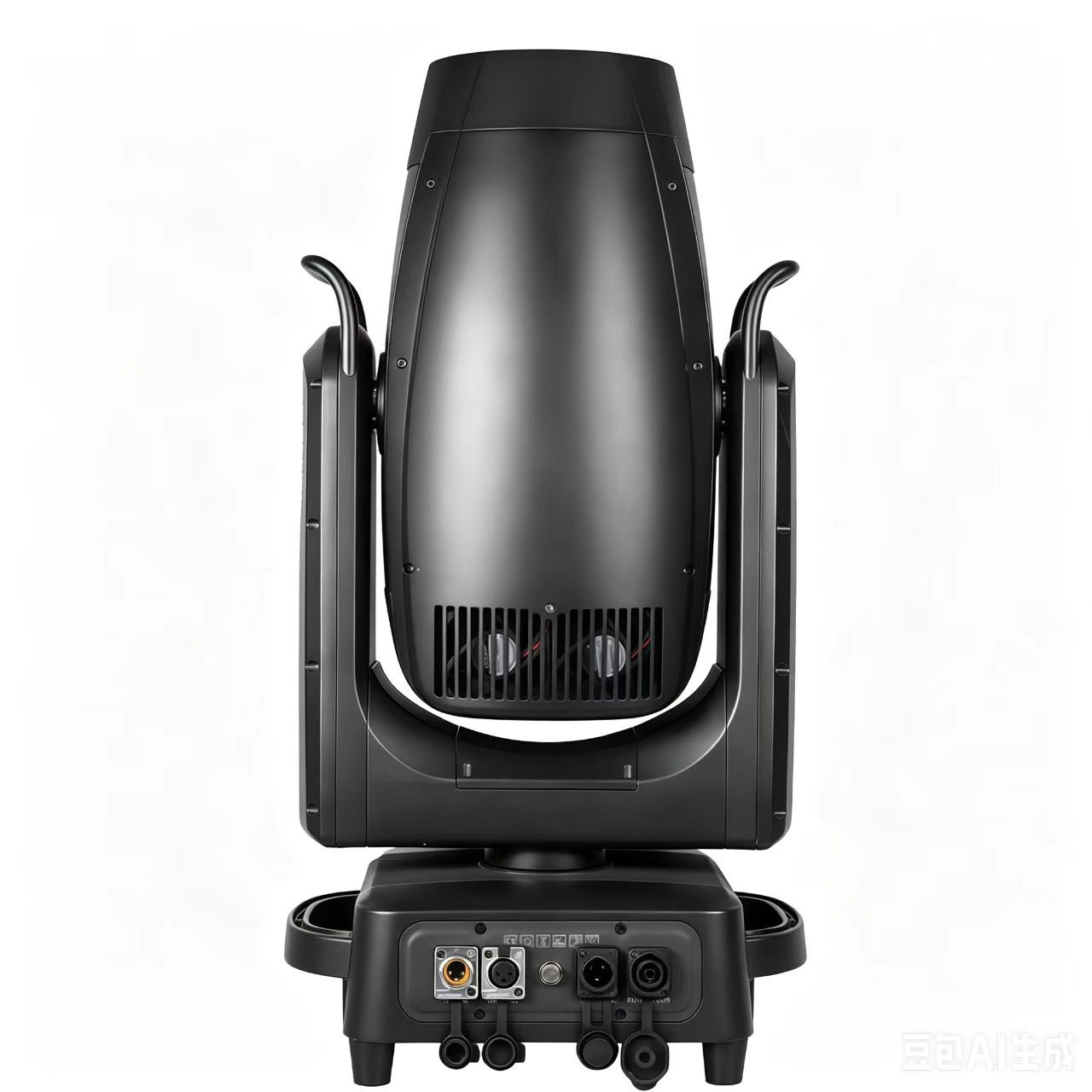

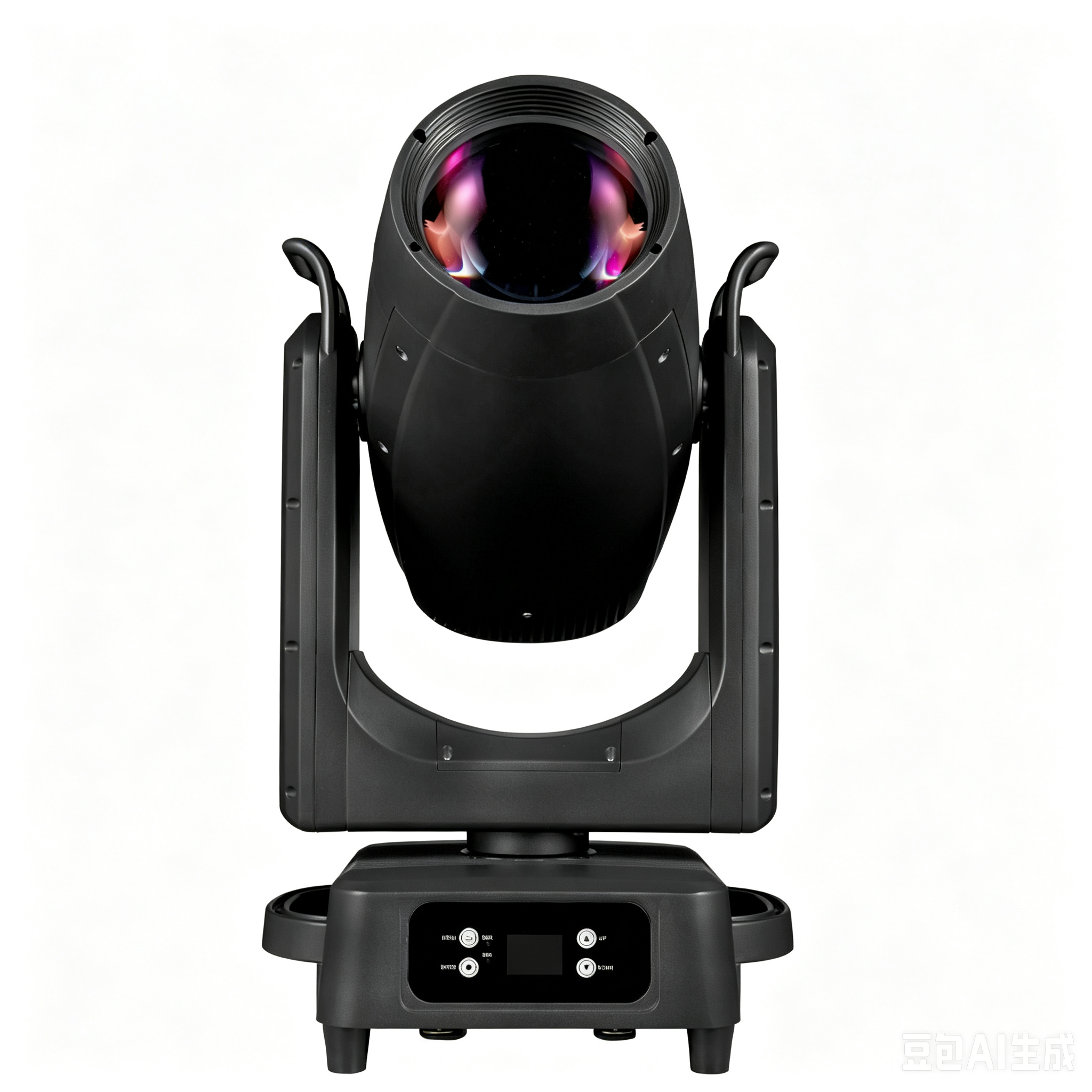

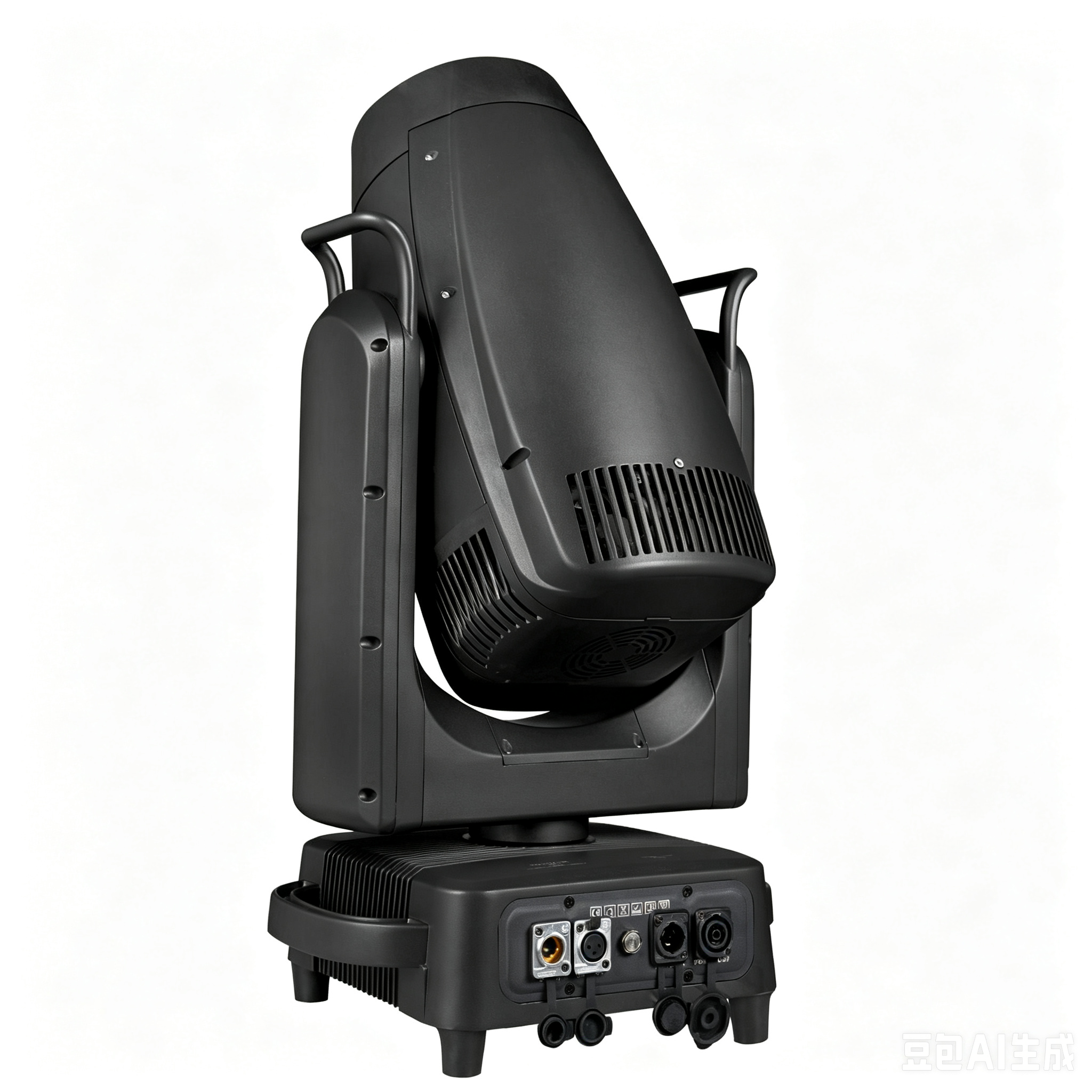

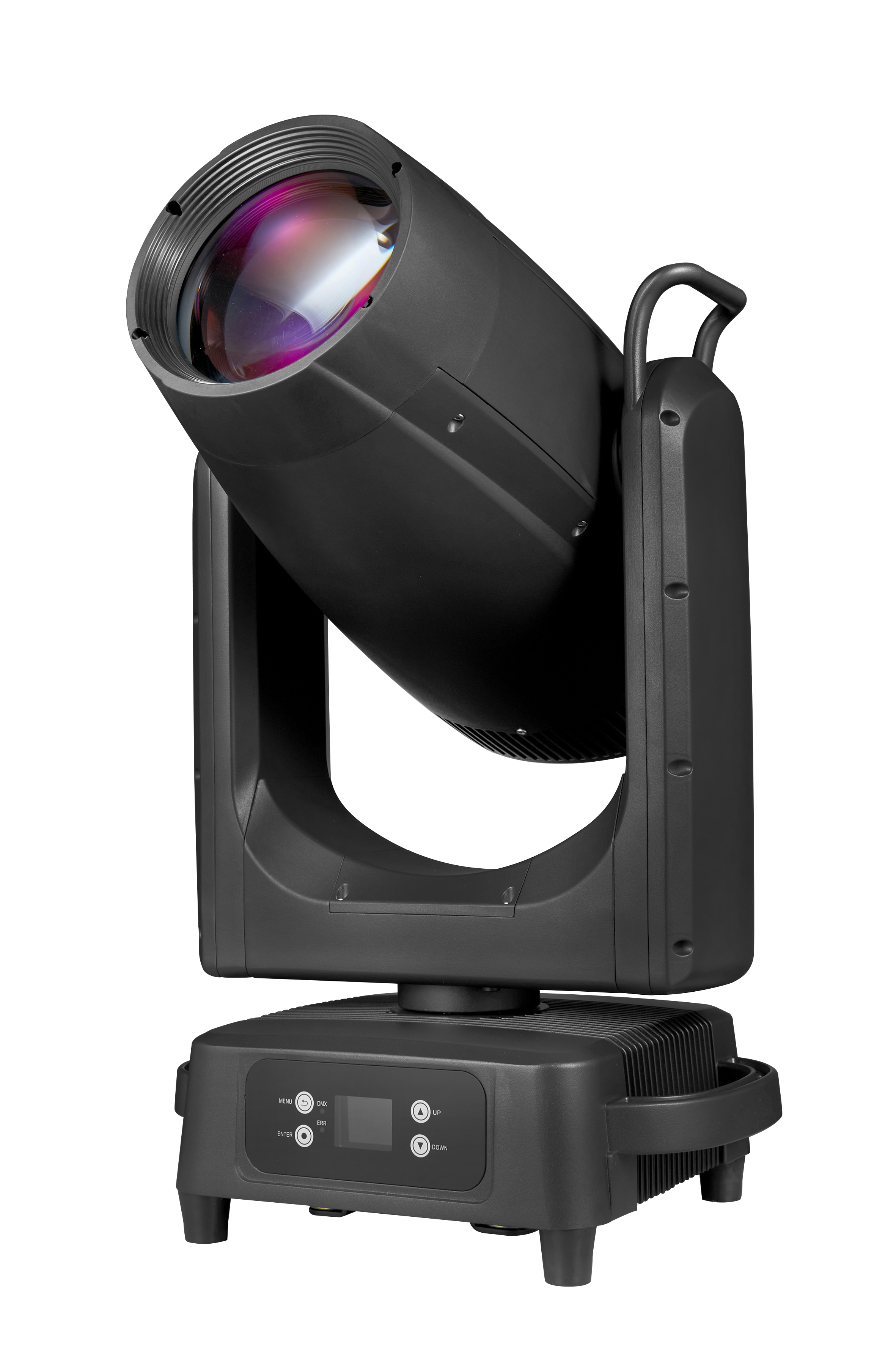

IP66 600WBSW MOVING HEAD

Name: IP66 600WBSW MOVING HEAD
Brand: UNIBOND
SKU: UB-LED600BSWIP

No.UB-LED600BSWIP

Tagline:

Beam, Spot, Wash in one 22kg IP66 fixture. 600W LED with full CMY+CTO and a magnesium alloy chassis.

Bullet points:

True 3-in-1 performance — 2.5°–40° linear zoom from sharp beam to wide wash
600W high-output LED engine with precision optics for uniform, saturated light
22kg magnesium alloy chassis — dramatically lighter than conventional aluminum housings

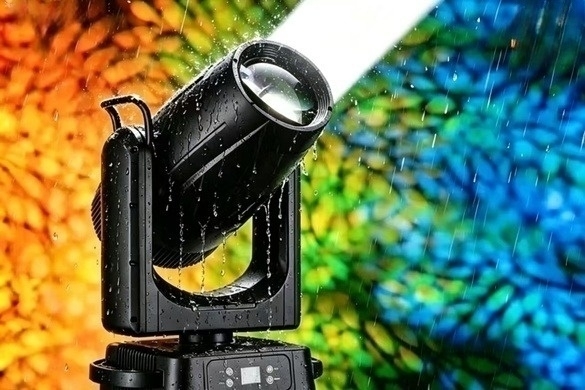

IP66 fully sealed for all-weather outdoor touring and permanent installation
Full CMY+CTO, dual prisms, 20,000h LED life

Applications: Concert & Touring · Outdoor Festivals · Theatre · Rental

Add to Quote List View Quote List

Stage luminaires - Full concert

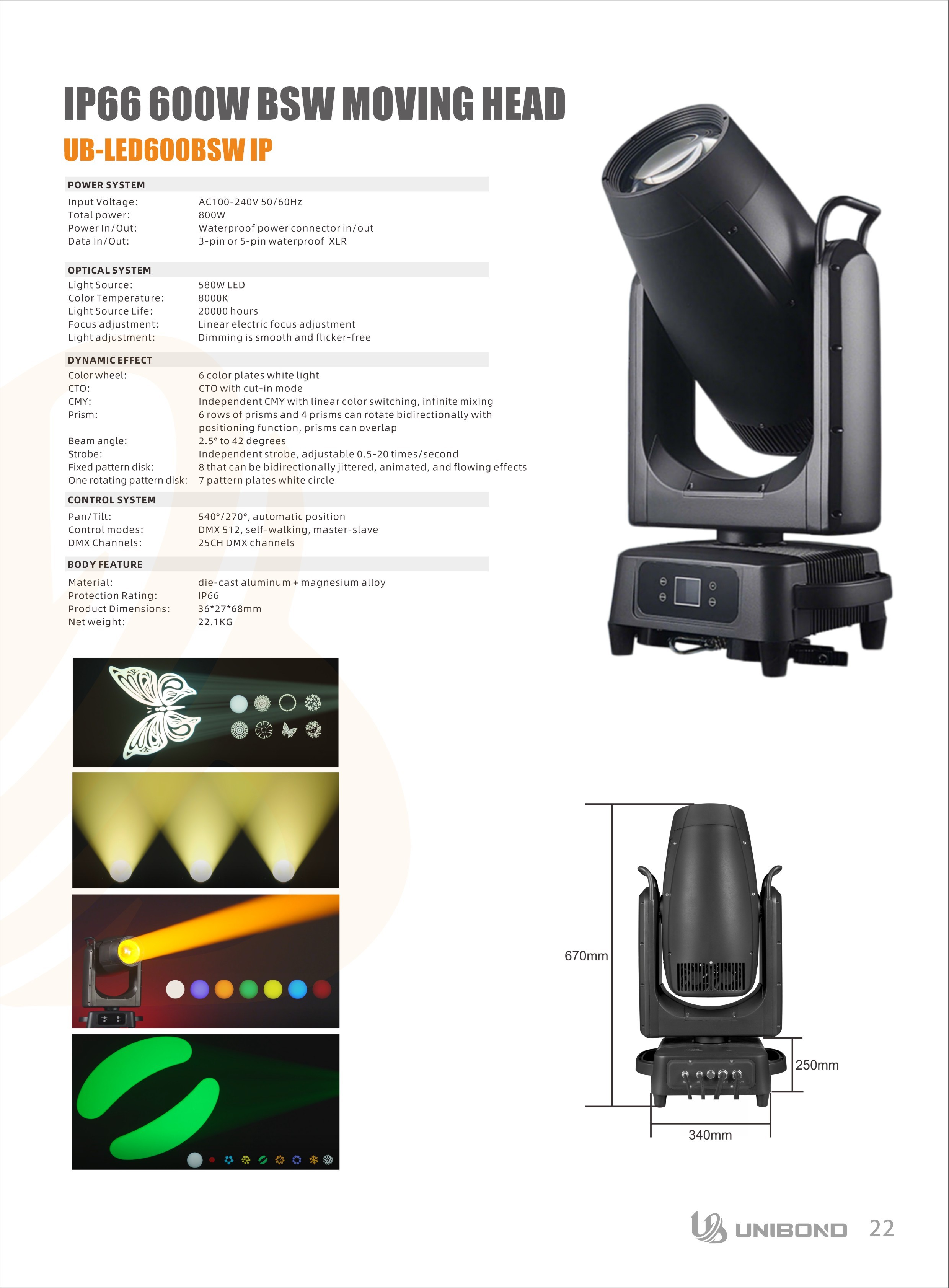

Description

Total Power: 800W
Focus: Linear motorized focus
Brightness: Smooth, flicker-free dimming
Light Source : 580W LED module, 8000K
LED Lifespan: 20,000 hours
Strobe: Independent strobe, adjustable from 0.5-20 times/second
Color: 6 color shades + white light
CTO: Independent cut-in CTO
CMY: Independent cut-in CMY, linear CMY color switching, stepless color mixing
Prisms: 6-row and 4-prism configurations, bidirectional rotation, with positioning function. Prisms can overlap.
Beam Angle: 2.5° to 42°
Fixed Gobo: 8 discs with bidirectional dithering, animation, and flowing effects

Rotating Gobo : 7 pattern pieces + white circle
Control Method: DMX 512, self-propelled, master-slave
Rotation Angle: X-axis 540°, Y-axis 275° with automatic positioning correction
Channels: 25 channels
Cooling System: Utilizes a large, high-quality copper pipe fully enclosed heat sink; gyroscope automatically adjusts the cooling system to effectively control lamp temperature.
Dehumidification System: Intelligent dehumidification and defogging system to effectively ensure lamp life.
Positioning Technology: Employs a magnetic coding positioning system, using magnetic components instead of the traditional Hall effect positioning system for higher accuracy and reliability.
Material: High-end housing made of international die-cast aluminum and aerospace die-cast magnesium alloy.

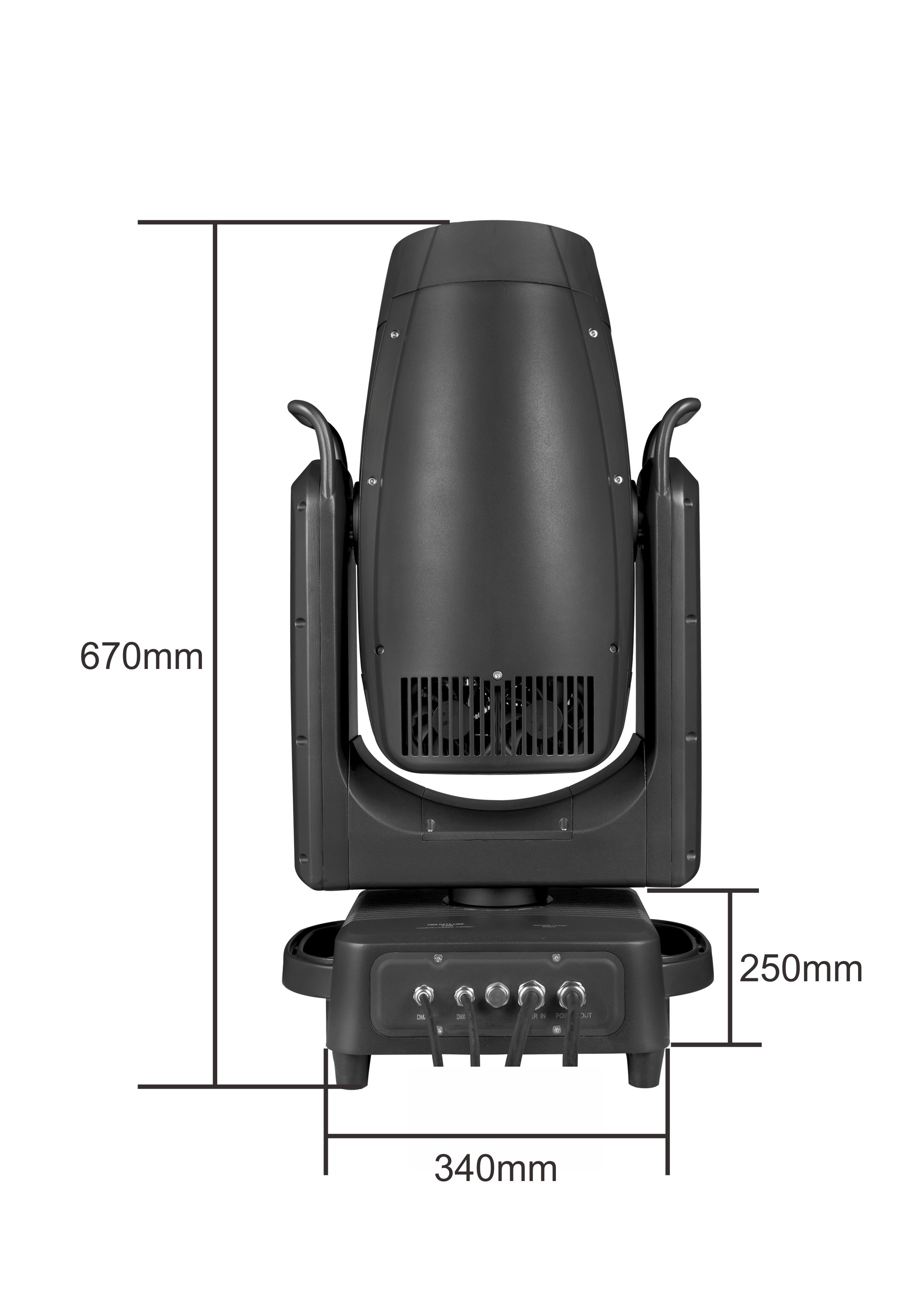

Dimensions: 36*27*68mm
Net Weight: 22.1KG
Protection Rating: IP66
