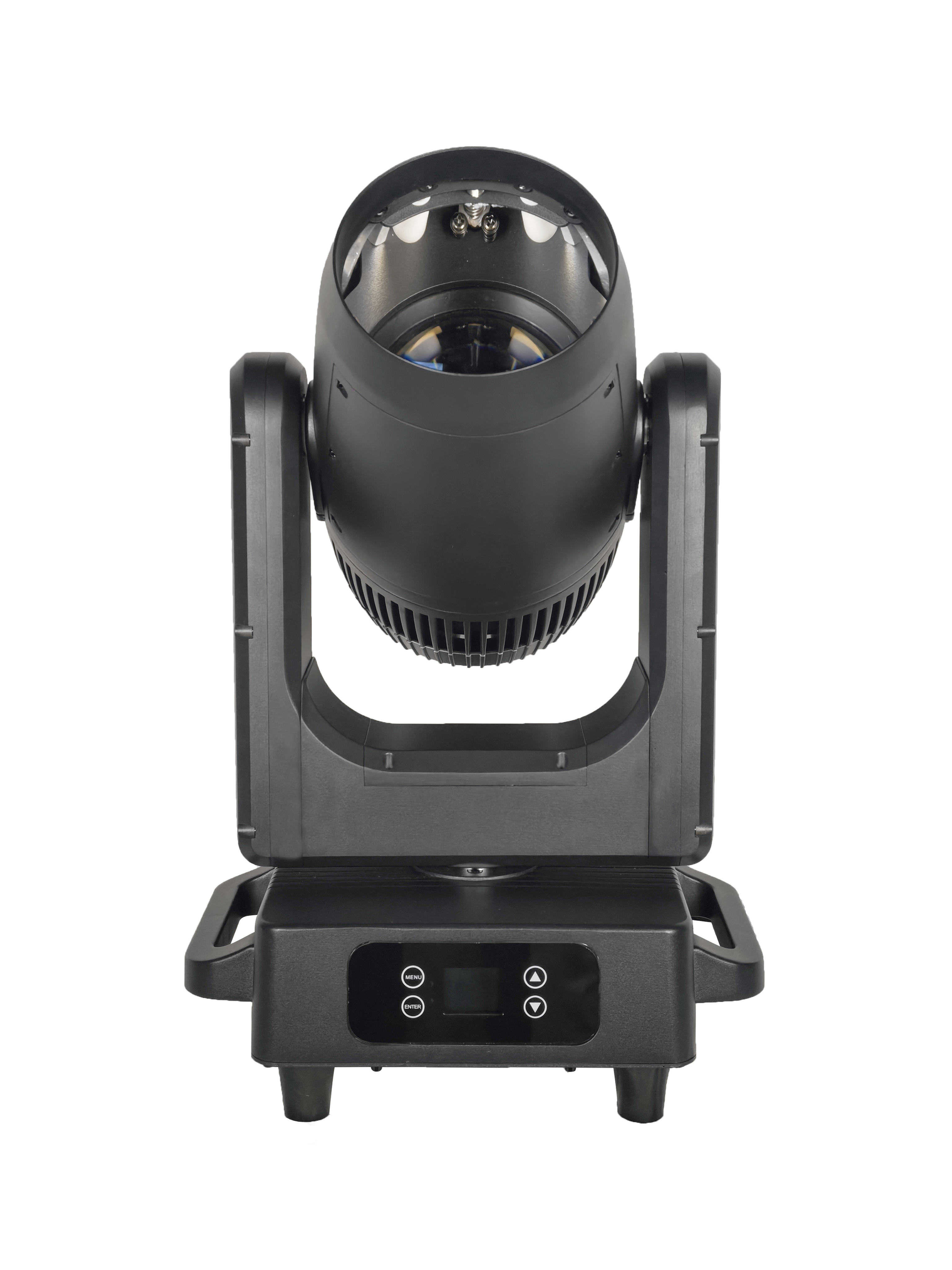

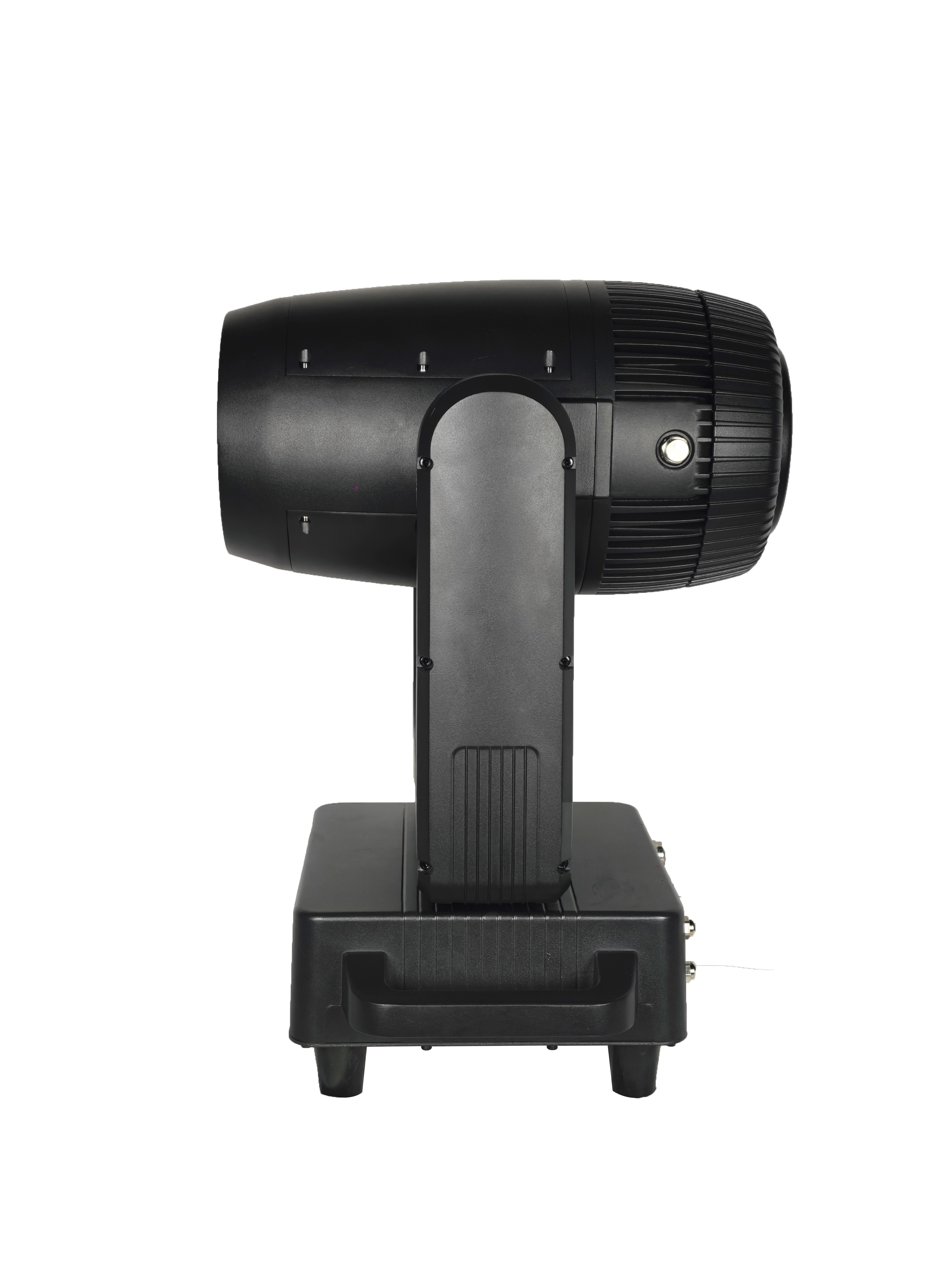

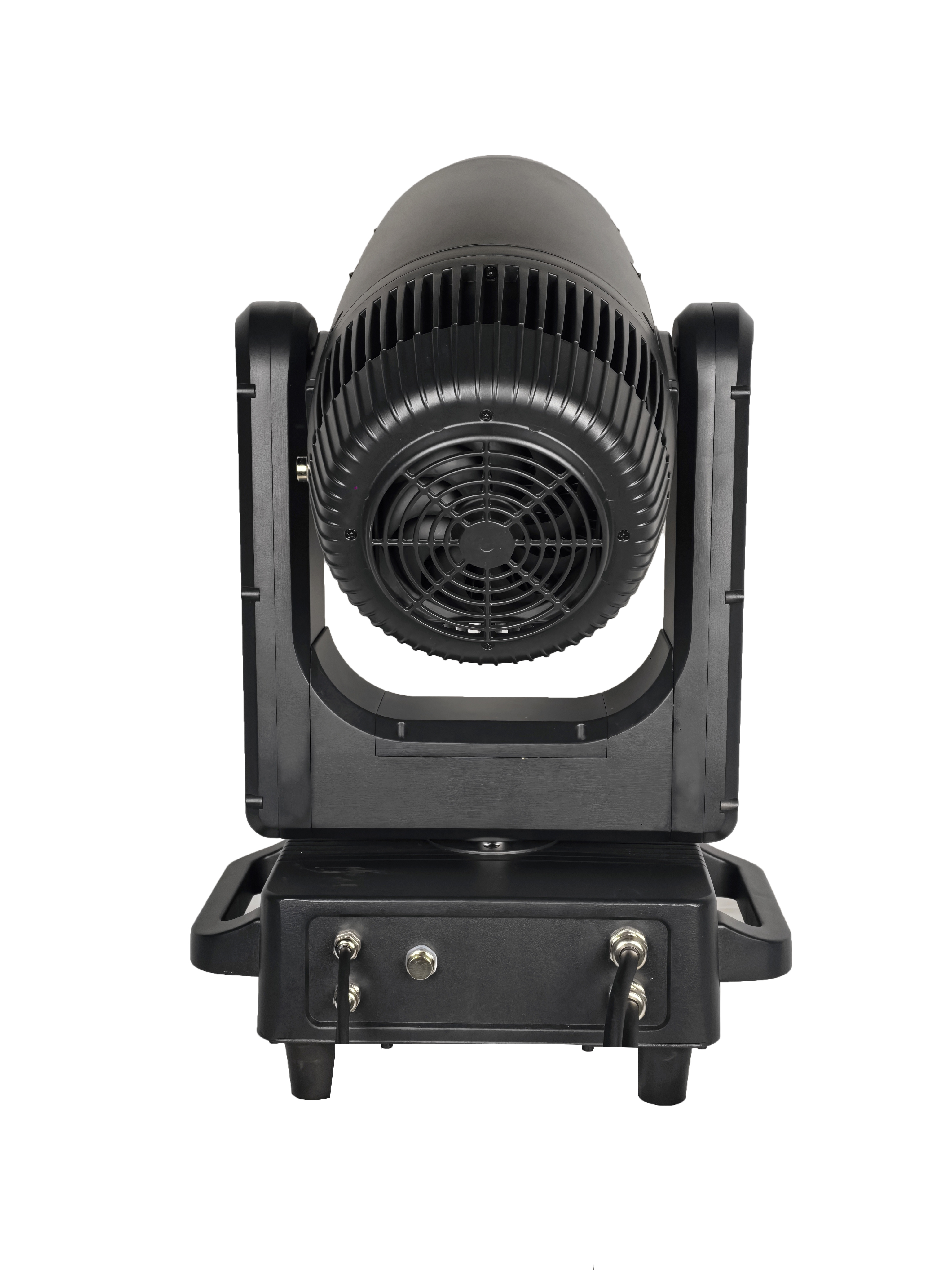

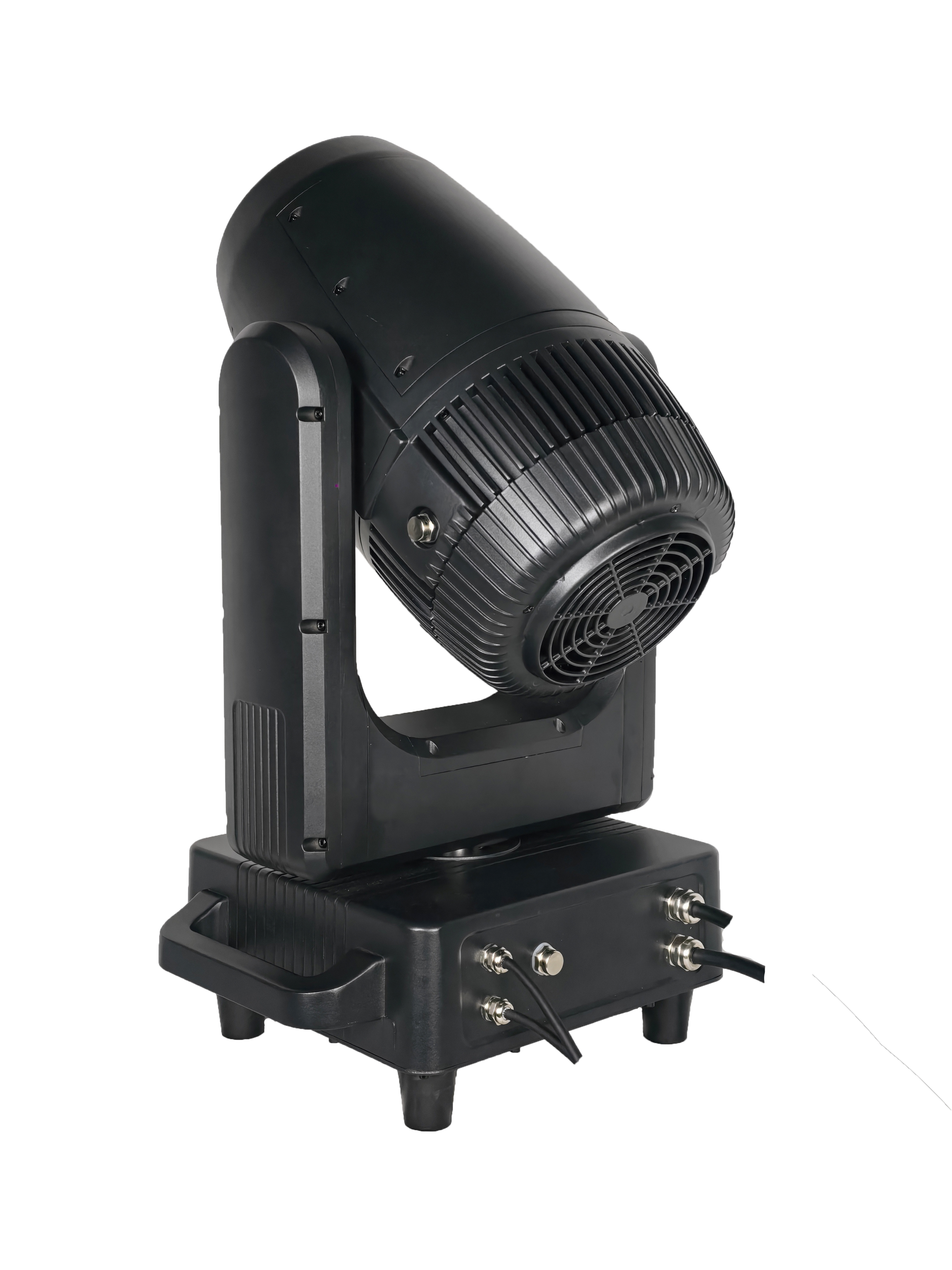

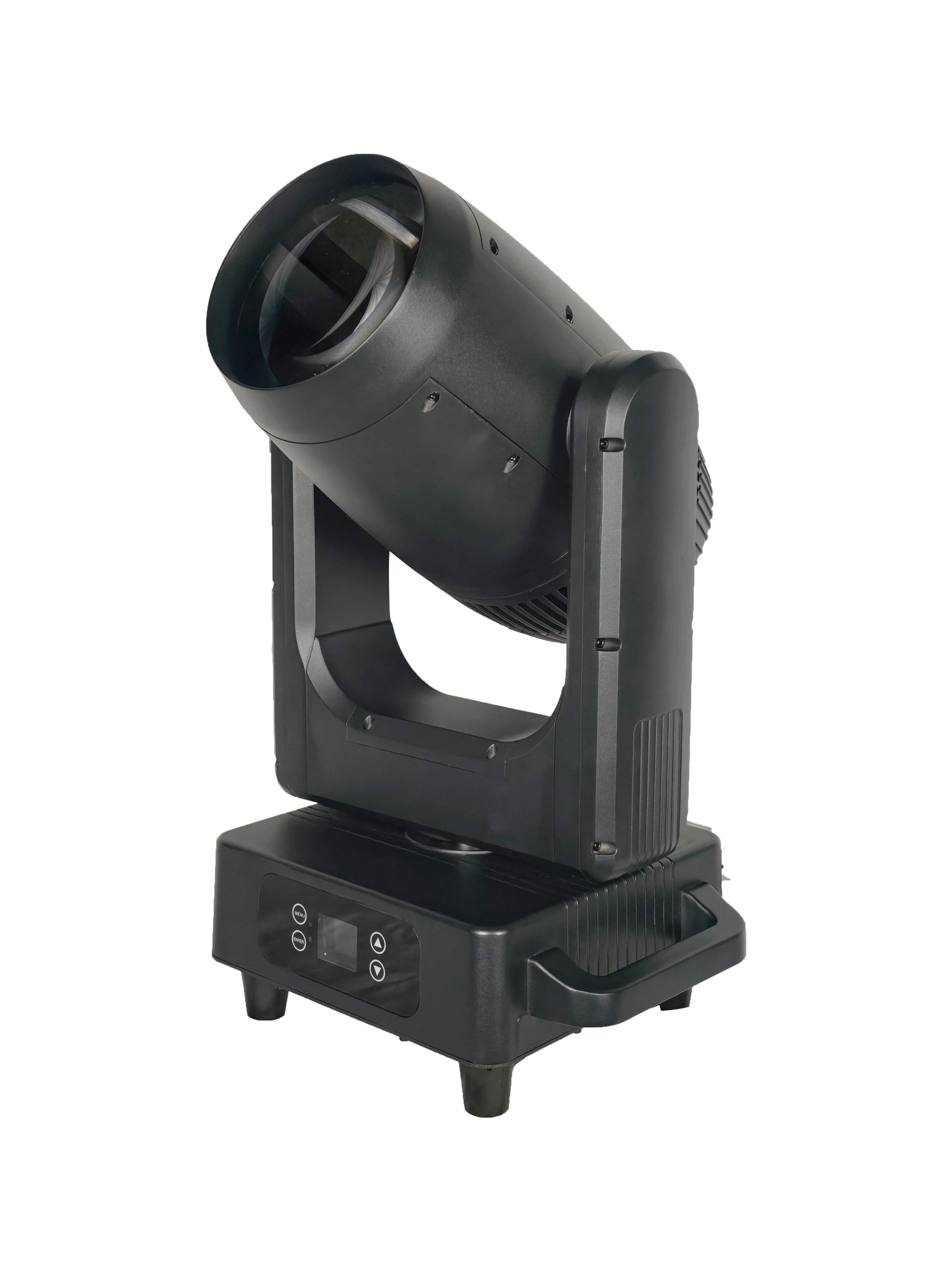

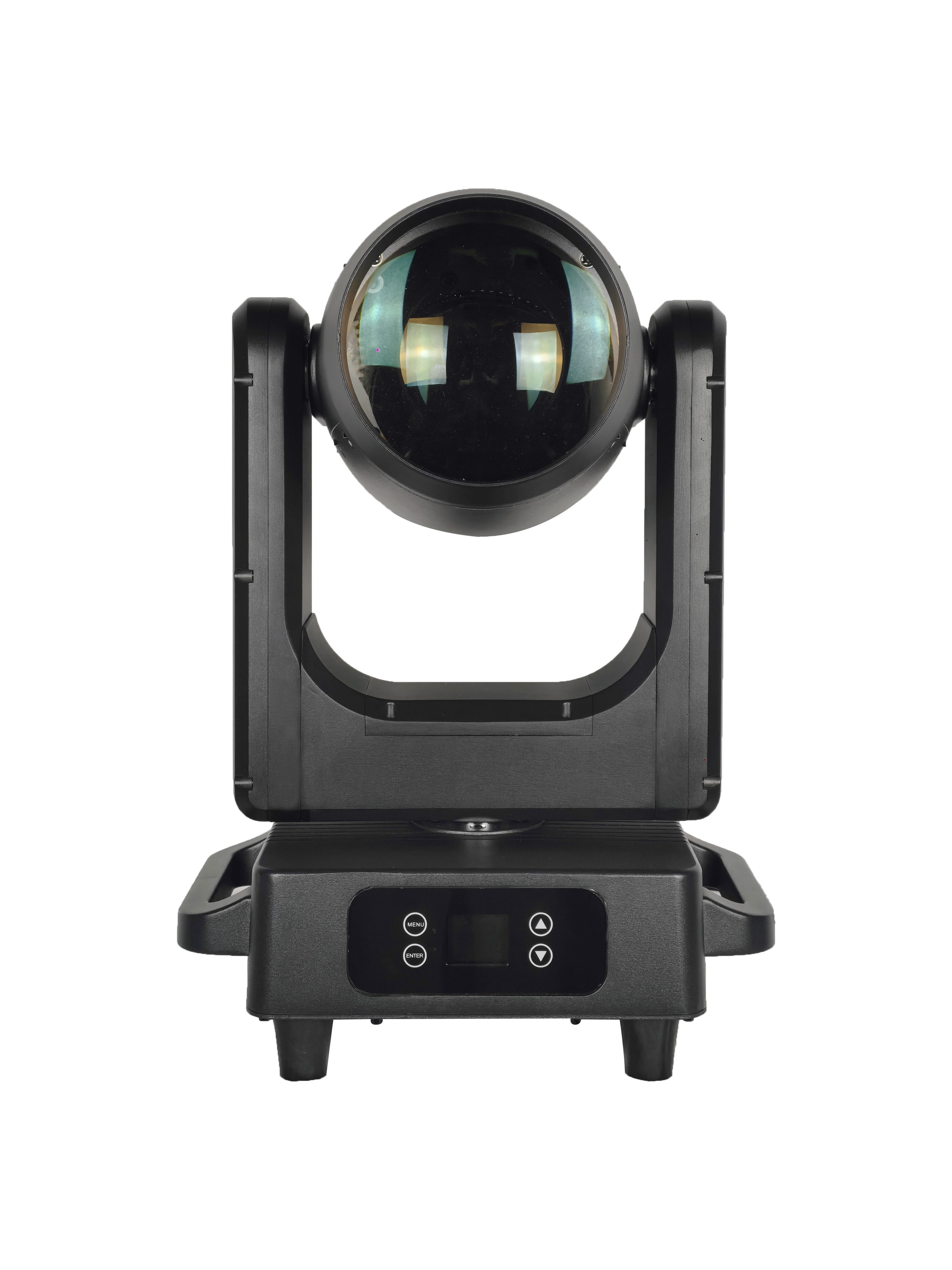

IP66 POWERFUL RGB 100W LASER MOVING

OPTICAL SYSTEM

• Laser light source: RGB 100w Laser
• Light source life: 20,000 hours
• Color temperature: 7500K(customizable)
• Beam angle: 0.9°
• Optical lens: imported optical lens, light exit 145mm
• Dimming: 0-100% linear dimming
• Focus zoom: 0~100% Electronic linear HD focus

POWER SYSTEM

• Voltage: AC110-240V; 50/60Hz
• Power: 150W
• DMX connectors: 3 pin or 5 pin XLR IN/OUT
• Power connectors: IP66 Power head input

DYNAMIC EFFECTS

• Color: RGB laser based system with derating to preserve laser diodes
• Prism: 1 prism(customizable)
• Fog: 1 independent fog effect, the light spot is soft and natural
• Strobe: 0.5-20HZ with pulse flickering and synchronous/asynchronous flickering effects

CONTROL SYSTEM

• Pan/Tilt:  540°/270°
• Pan/Tilt scanning speed: standard and adjustable speed
• Pan/Tilt scanning system: Pan/Tilt can automatically correct and calibrate
• Intelligent control: display panel can record the device usage time, display device temperature, channel data and software version
• Cooling system: Copper tube + fan cooling structure + temperature intelligent monitoring+Self-adjusting variable speed fan, safety protection against excess temperature
• Control protocol: DMX512, Self-propelled, voice-controlled, master-slave mode
• Channel mode: 27CH

LIGHT BODY FEATURE

• Housing: aerospace magnesium alloy
• Light color: black
• Working Temperature: -20~45℃ (Other customization option)
• Product size: 366*256*545mm
• NW: 15KG
