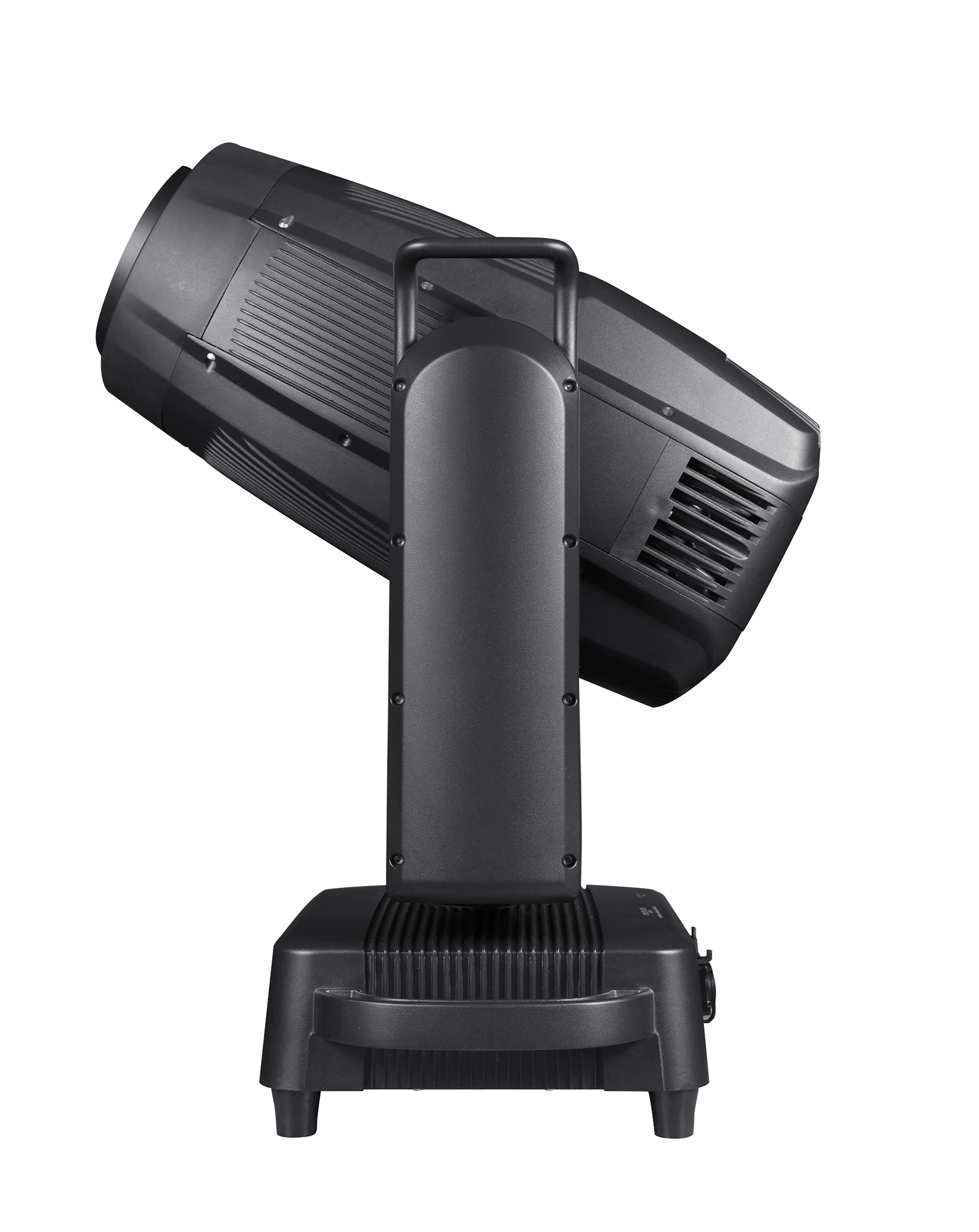

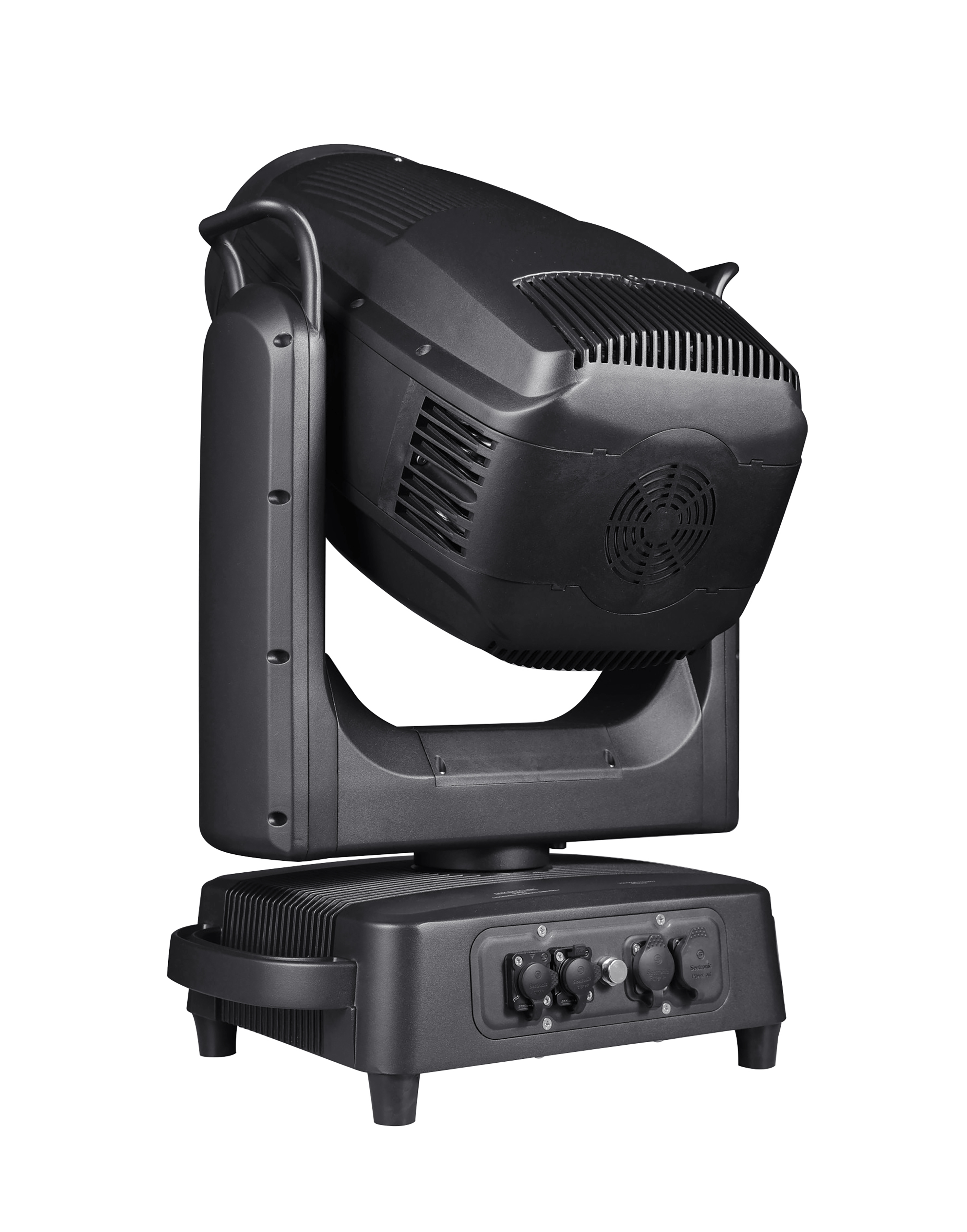

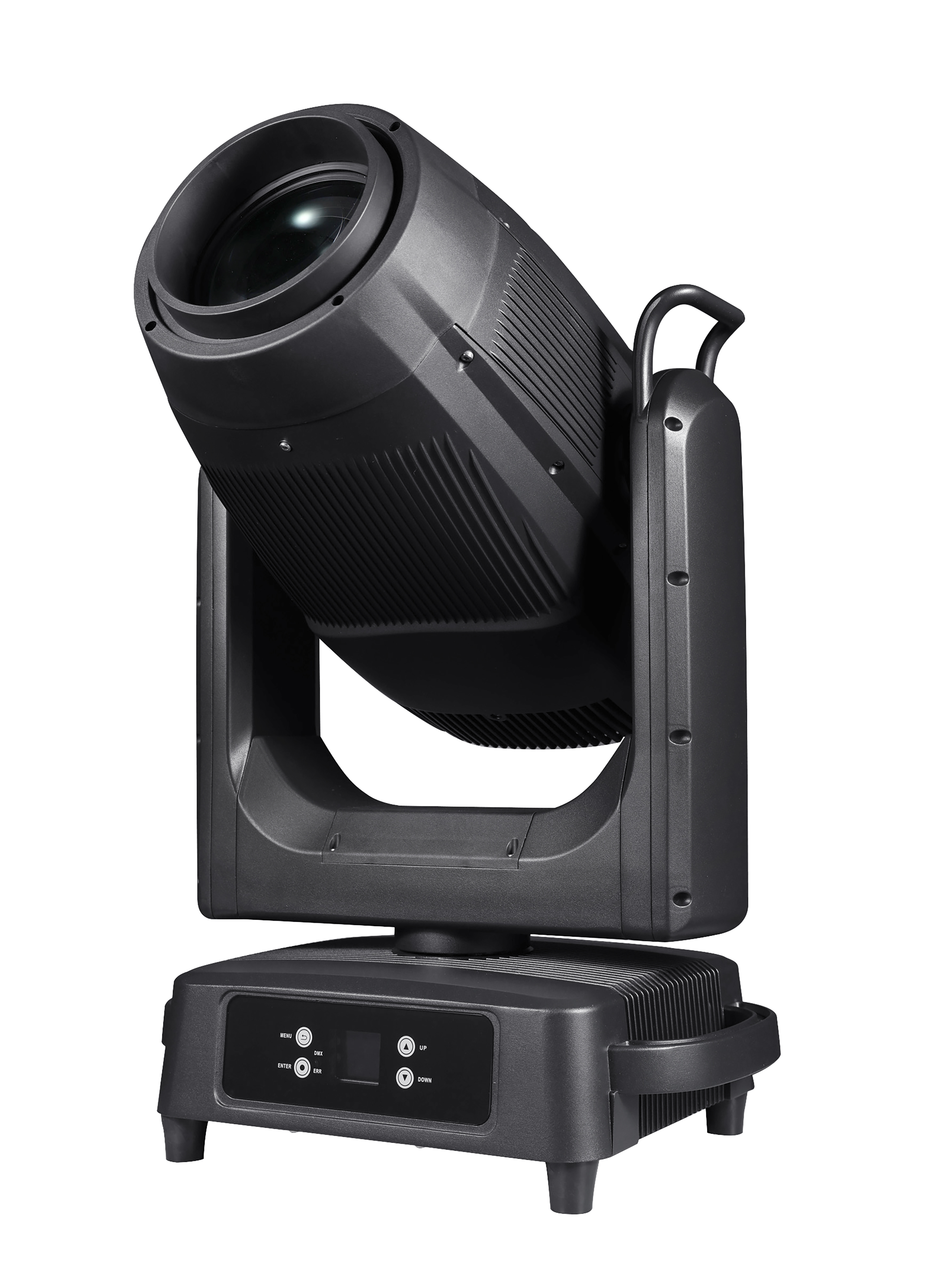

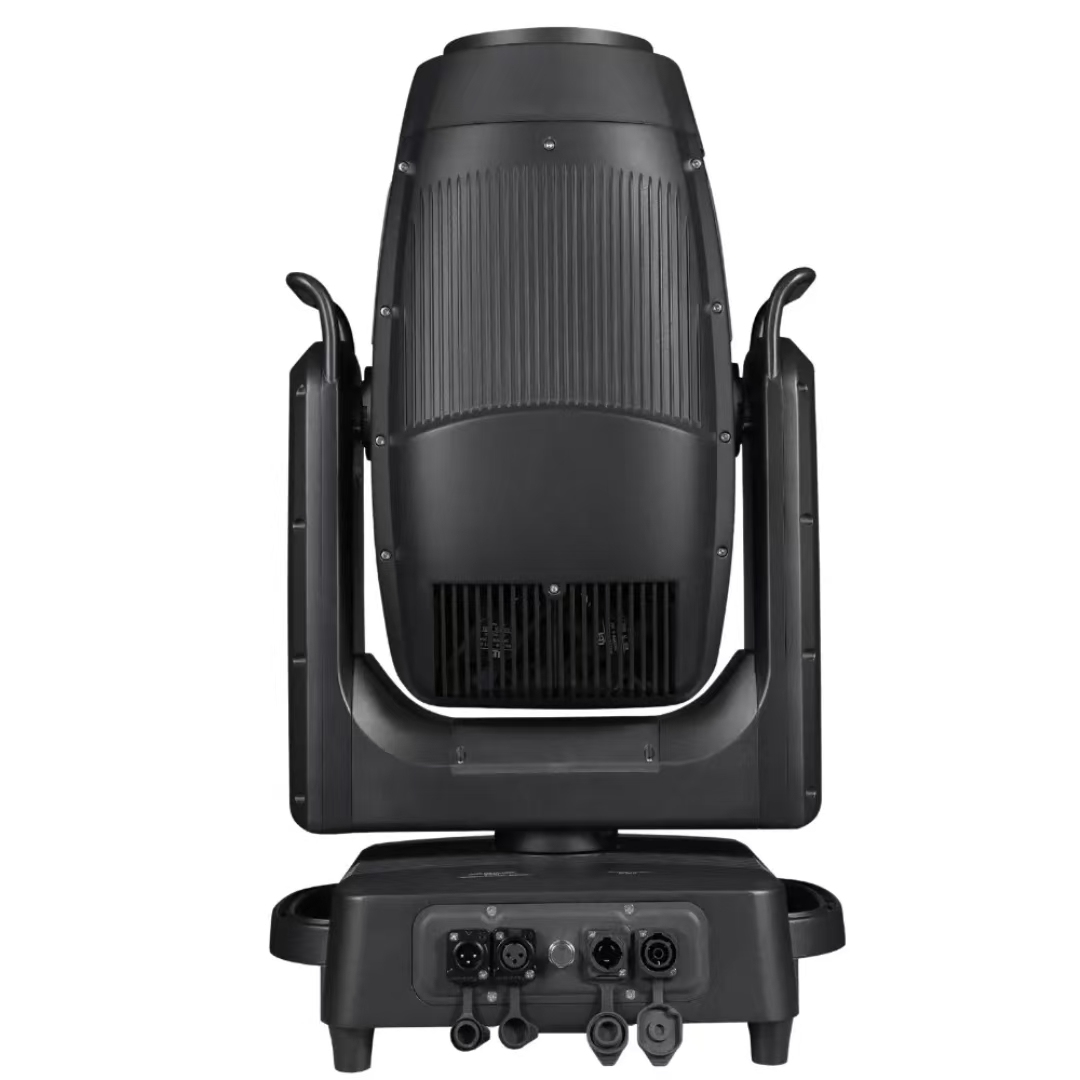

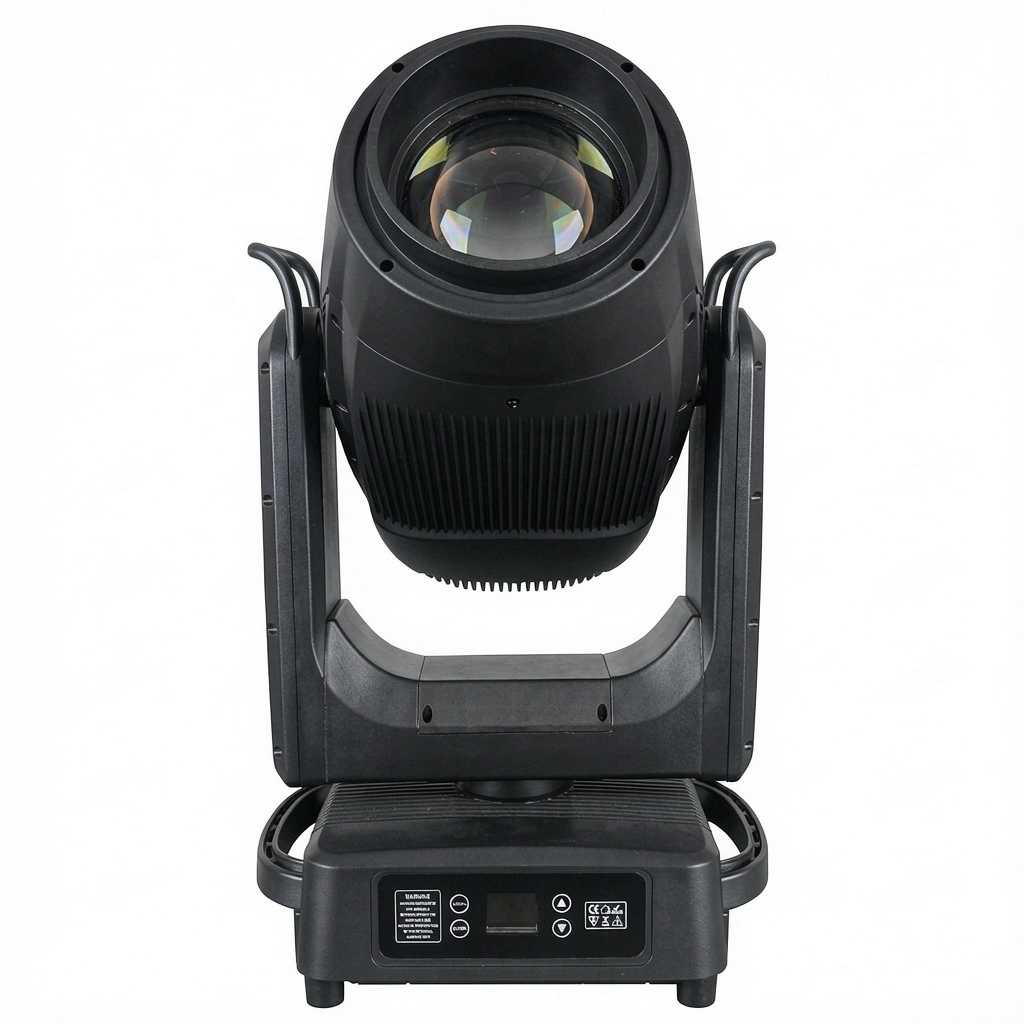

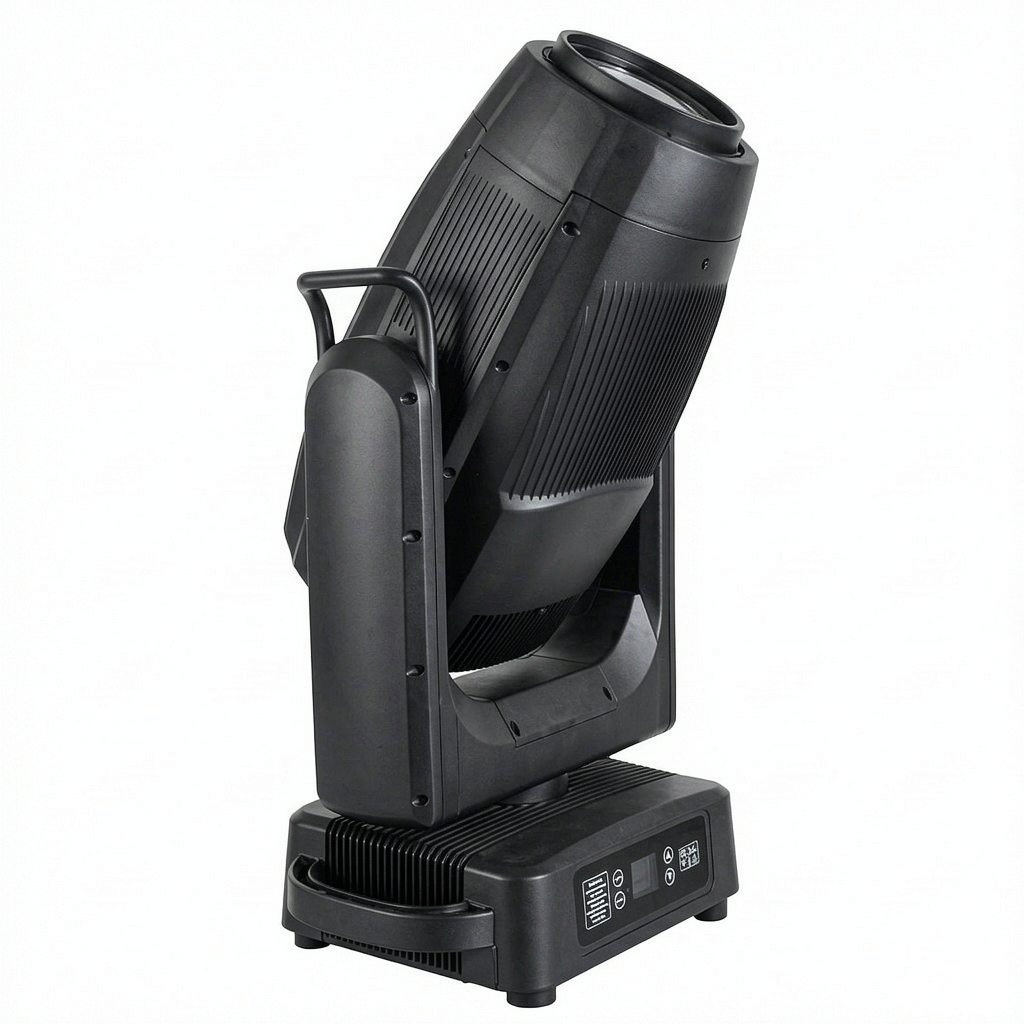

Magnesium alloy IP 800W /1000W BSWF Moving Head Light

LIGHT SOURCE & OPTIC

• Light source: White LED 800W
• CRI: Standard mode Ra≥75, High CRI mode Ra≥90
• Lifespan: 20,000H
• Color temperature: 7000K(customizable)
• Lens diameter: 135mm
• Beam angle: 5°–50°

EFFECTS

• Fixed color wheel with 5 colors+CRI filter
• Independent CMY Blades + CTO
• Pattern cutting: 4 cutting blades, 8 independent control positions
• 1 Static Gobo Wheel with 8 gobos+ animation disc
• 4 facet prism, reversible rotation with adjustable speed
• Rotating Gobos:1 rotating gobo wheel with 7 inter changeable glass patterns
• Strobe: Multiple speed strobe
• Dimming: 0-100% smooth dimming
• Focus: Electric focus system

CONTROL & PROGRAM

• 4 touch buttons
• Control: DMX512
• DMX Channel:38CH/41CH

POWER SUPPLY

• Input voltage: AC100-240V 50/60Hz
• Consumed Power: 930W

MOVEMENT

• Pan:540 degrees
• Tilt: 270 degrees

• Working in any position
• Magnesium Aluminum IP66 body

WEIGHT & SIZE

• NW: 28KG
• Carton box 1in1:810*400*480 cm

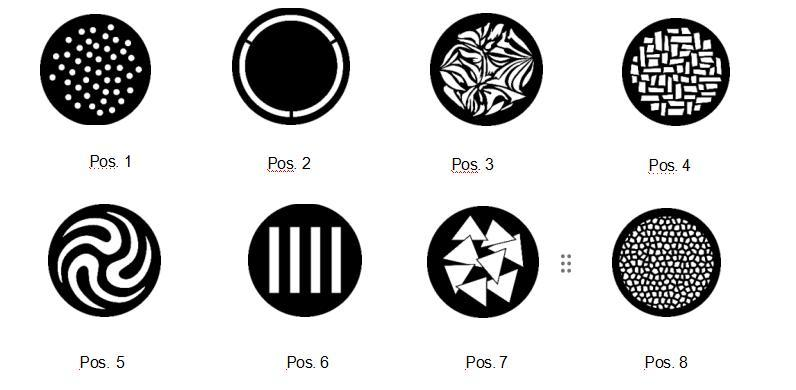

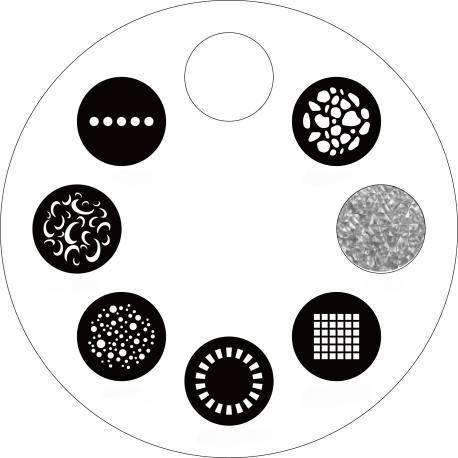

COLOR SYSTEM & GOBOS

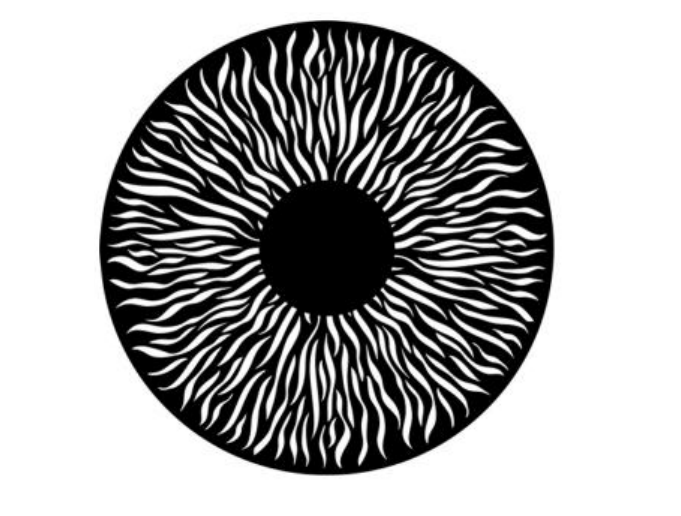

Animation  Disc           Prism 4 faces     Frost:

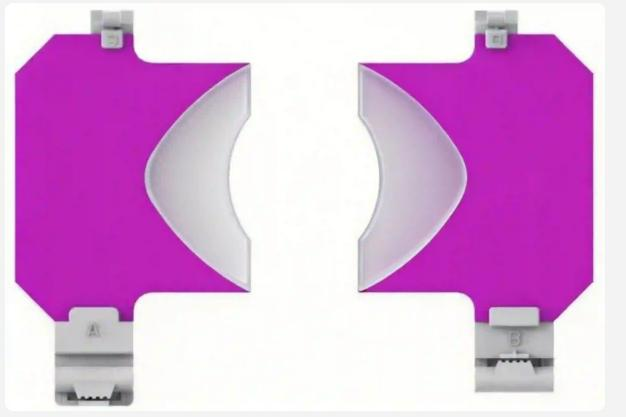

CMY AND CTO:

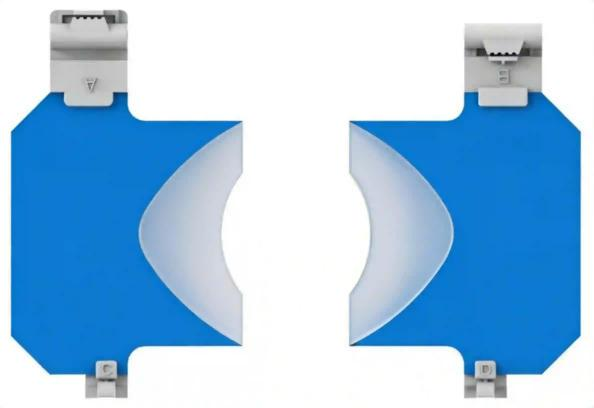

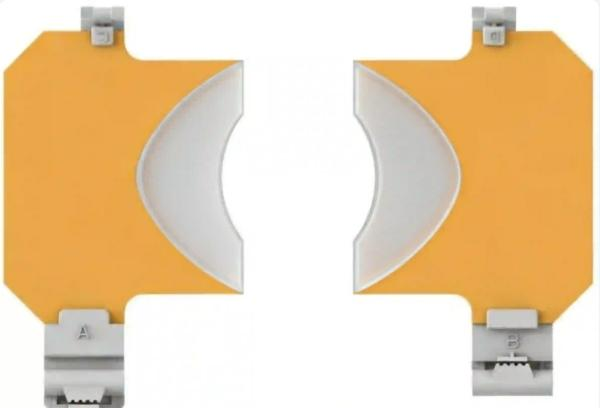

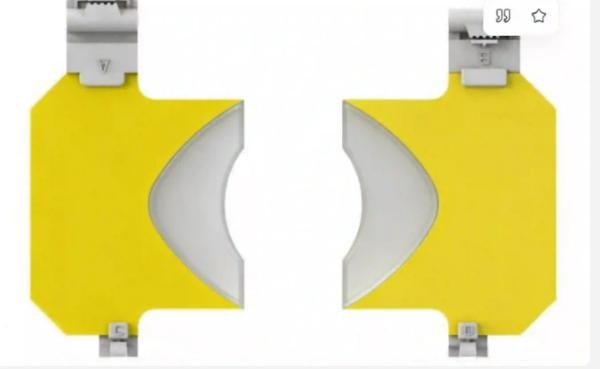

Cyan                                  Magenta:                   Yellow:



CTO

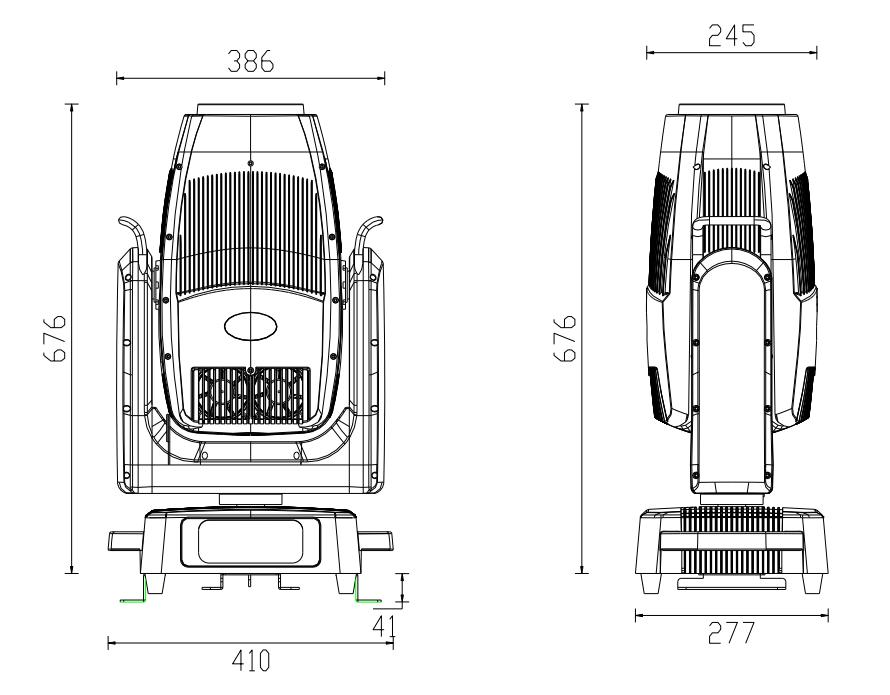

Dimension :

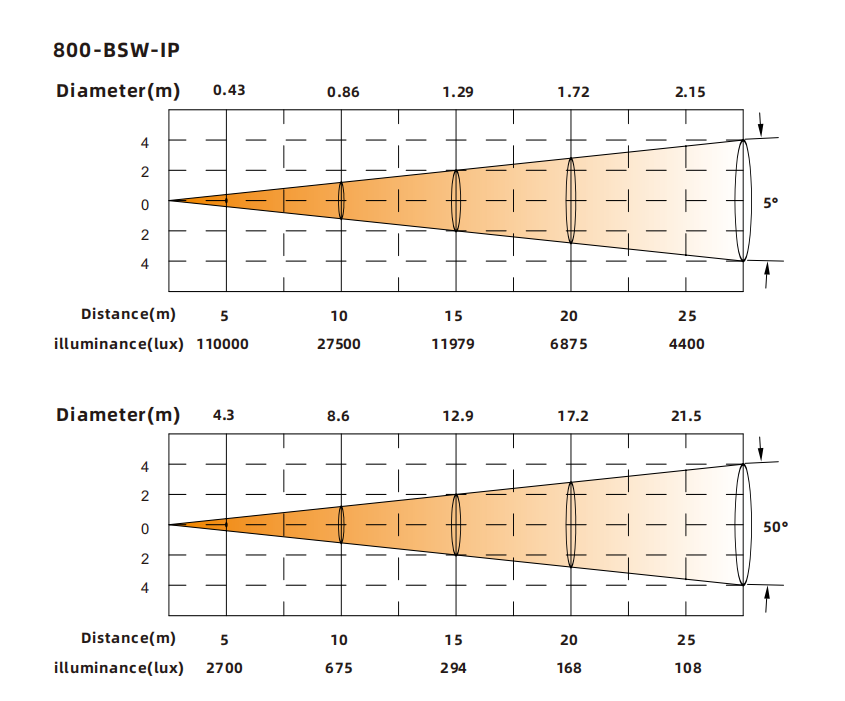

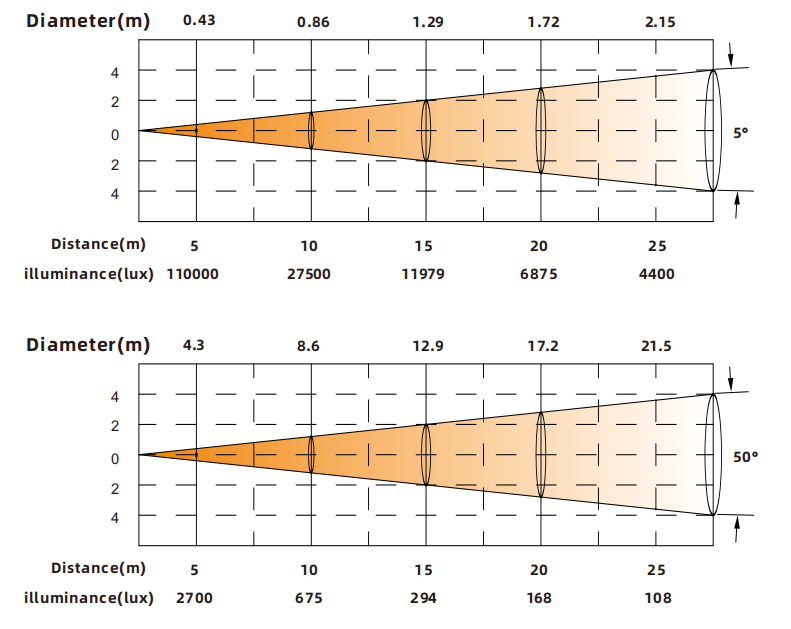

IIuminance :
